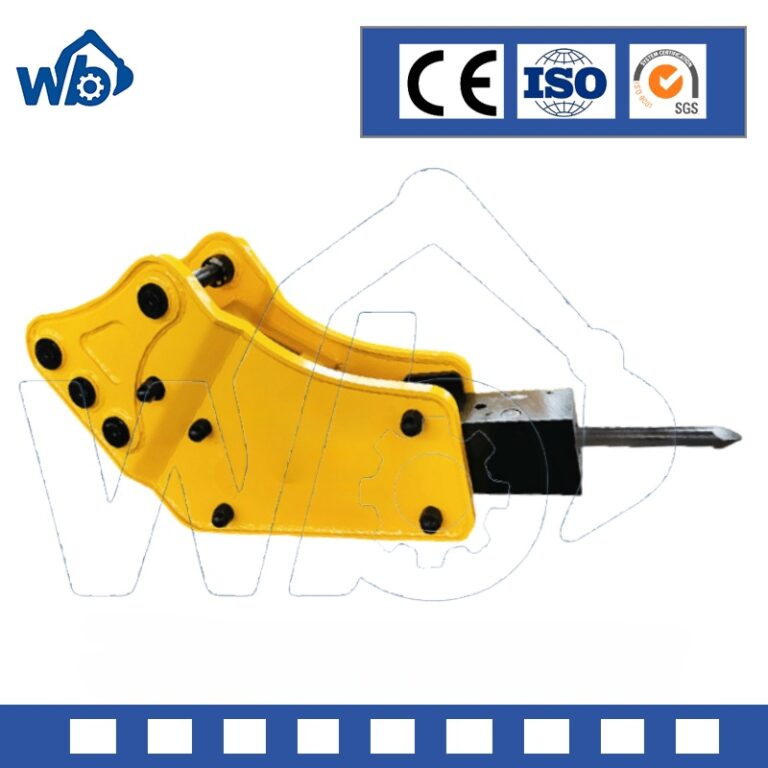

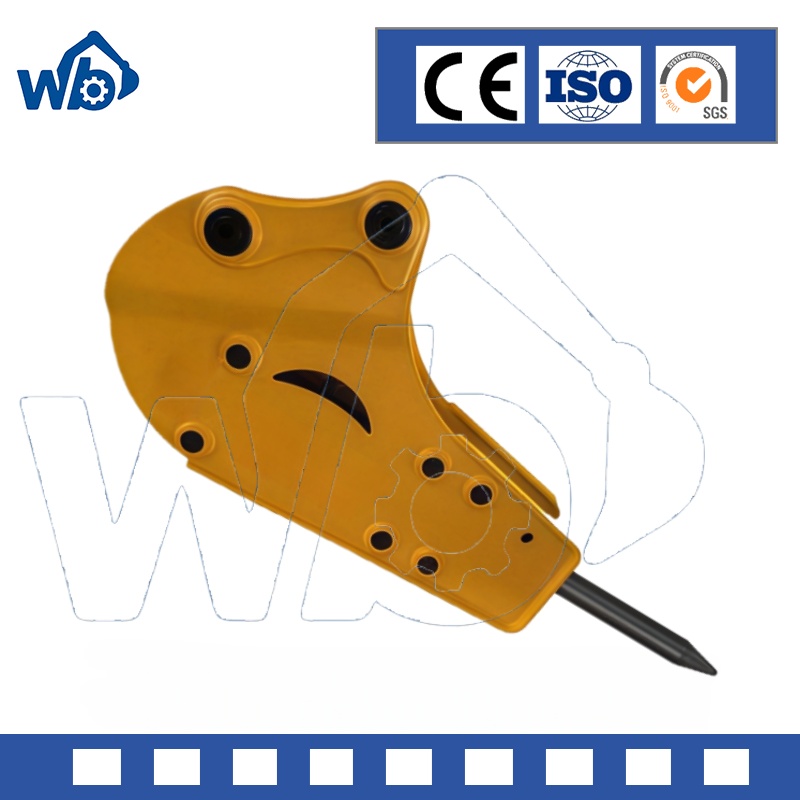

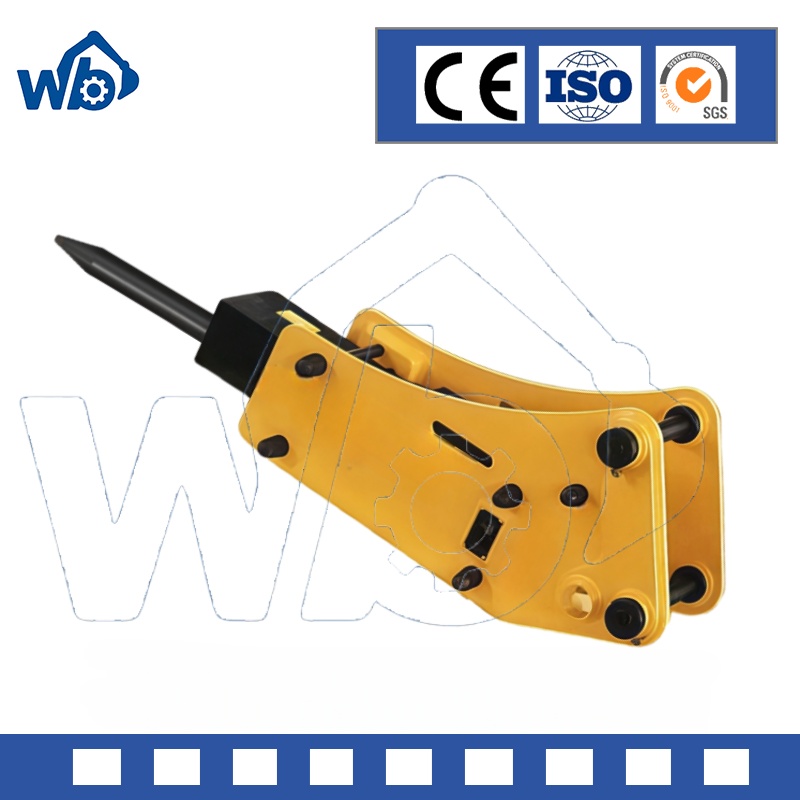

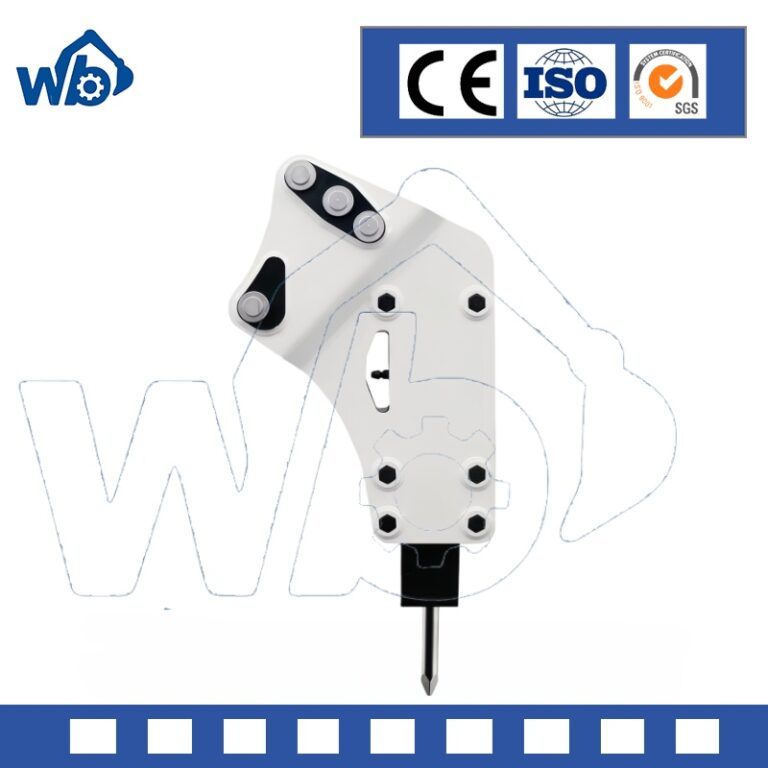

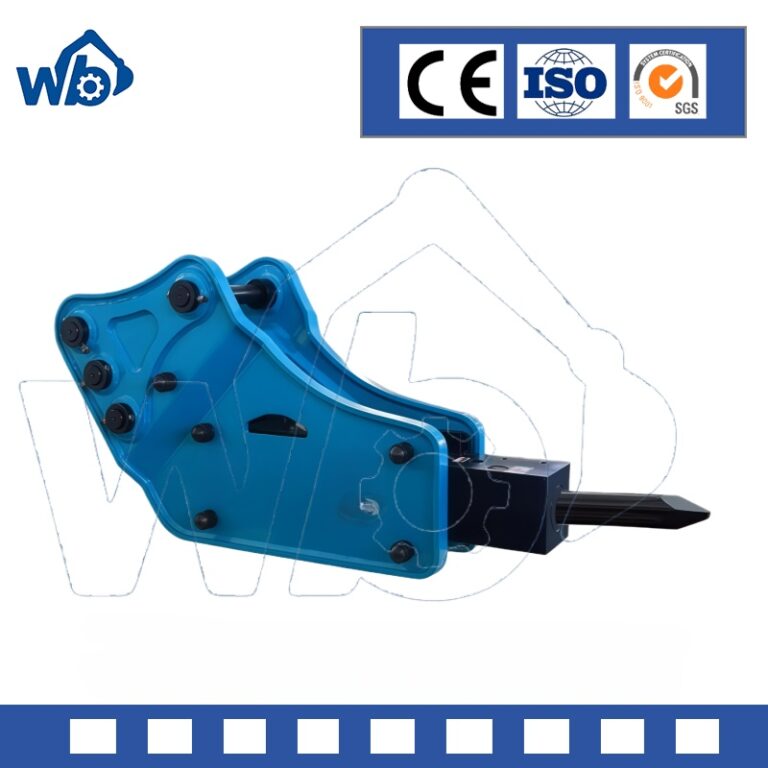

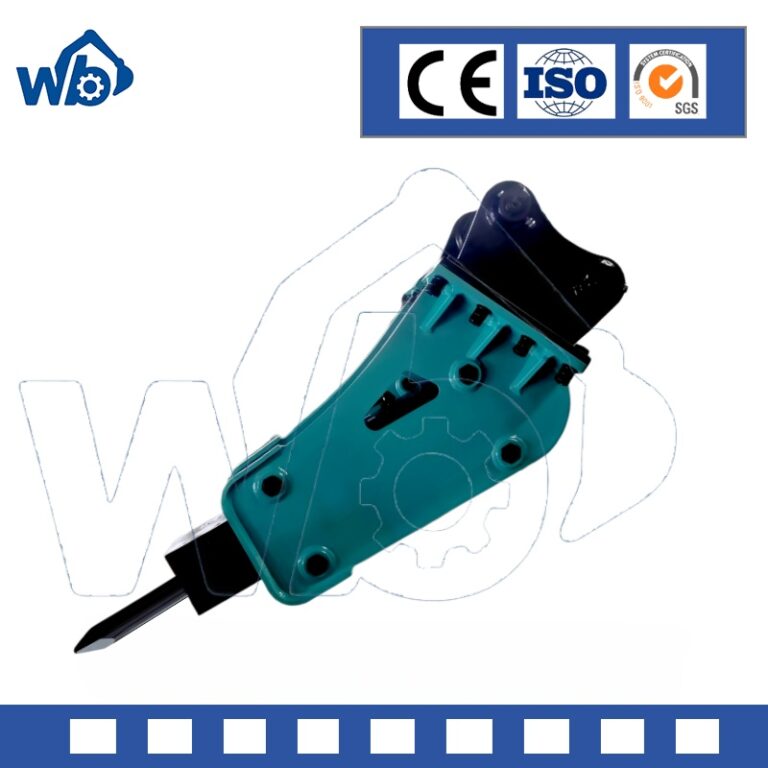

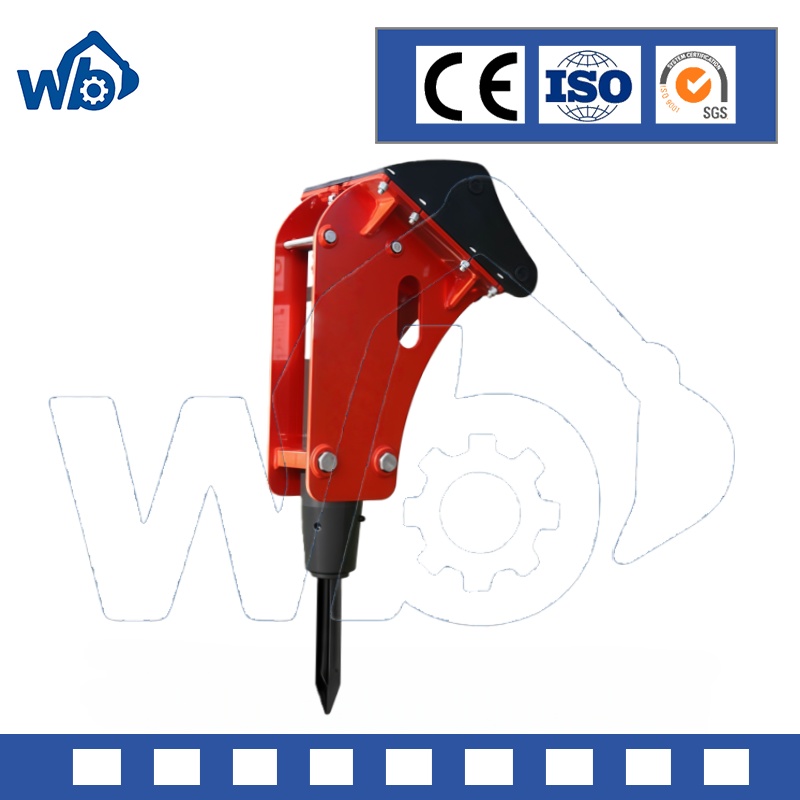

Banana Hydraulic Breaker
- Suitable for 1–40 ton excavators.
- Slim “banana” body design provides excellent visibility and easy positioning.
- Delivers powerful impact energy for rock breaking, demolition, and trenching.
- Simple structure with fewer components for easy maintenance.
- High-quality wear-resistant parts ensure reliable performance and long service life.
- Ideal for construction, mining, quarrying, and roadwork applications.
Product Description
Banana Hydraulic Breaker for Excavator | Curved Rock Breaker Attachment
The Banana Hydraulic Breaker is a specially designed excavator attachment featuring a curved structure that improves visibility and operating flexibility. Its unique design allows operators to work efficiently in narrow spaces, deep trenches, and complex working environments.
Built with high-strength materials, the banana type hydraulic breaker provides powerful impact force, excellent durability, and stable performance. It is ideal for concrete demolition, rock breaking, and other heavy-duty applications.
Specification
Item/Model | Applicable excavator weight /ton | Workflow /lpm | Frequency of attack /bpm | Drill rod diameter /mm | Pressure /bar | Weight /kg |
WB02-450 | 1.2-3.0 | 20-40 | 700-1200 | 45 | 90-120 | 125 |
WB02-530 | 2.5-4.5 | 25-45 | 600-1000 | 53 | 90-120 | 151 |
WB02-600 | 3-5.5 | 30-60 | 500-1000 | 60 | 110-140 | 300/0/0 |
WB02-680 | 4-7 | 40-70 | 500-900 | 68 | 110-160 | 357 |
WB02-750 | 6-9 | 50-90 | 400-800 | 75 | 120-170 | 446 |
WB02-850 | 7-14 | 60-100 | 400-700 | 85 | 150-170 | 729 |
WB02-1000 | 10-15 | 80-120 | 400-700 | 100 | 160-180 | 1003 |
WB02-1250 | 15-18 | 90-130 | 400-650 | 125 | 160-180 | 1367 |
WB02-1350 | 18-25 | 135-170 | 400-650 | 135 | 160-180 | 1889 |
WB02-1400 | 20-30 | 120-180 | 400-600 | 140 | 160-180 | 1999 |
WB02-1550 | 27-36 | 180-240 | 300-450 | 155 | 160-180 | 2453 |
WB02-1650 | 30-40 | 200-260 | 250-400 | 165 | 160-180 | 3399 |
WB02-1750 | 35-40 | 210-260 | 200-350 | 175 | 160-180 | 4395 |
Product Features
- Curved Banana Design – Improves visibility and operating flexibility
- Strong Impact Force – Efficiently breaks concrete, rocks, and hard materials
- Durable Structure – High-strength materials for long service life
- Flexible Operation – Suitable for narrow and complex working areas
- Stable Performance – Reliable hydraulic system for continuous operation
- Easy Maintenance – Simple design for convenient servicing
Applications
- Concrete demolition
- Rock breaking
- Foundation excavation
- Tunnel construction
- Narrow space operations

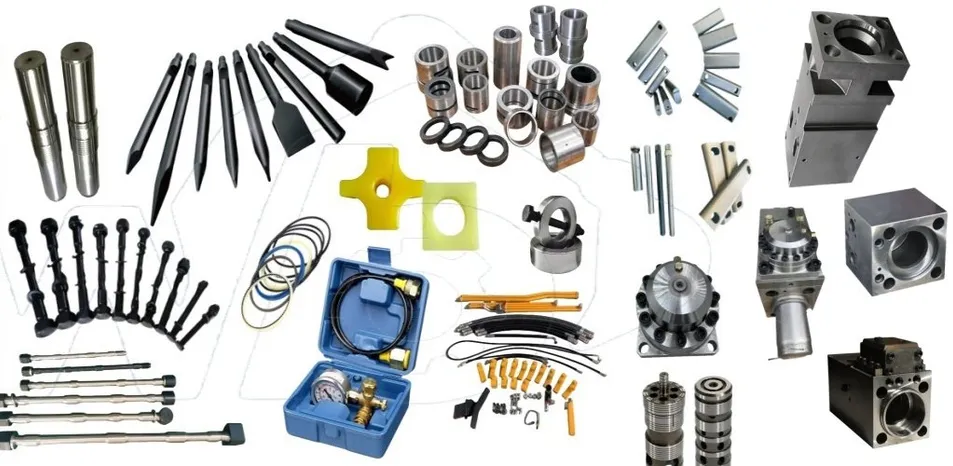

Hydraulic Breaker Parts
Our company supply parts for almost all brands hyd breakers. seal kits, diaphragm, piston, chisel, upper and lower bush
rod pin, through bolts, side bolts, control valve, front head, cylinder, back head, accumulator, charger kit, gas bottle
shock absorber, ect.we have hydraulic breaker parts for CAY, EDT, JCB, NPK, MSB, Atlas-copco, Furuwawka, Daemo, Fine, Toku, Okada, Beilite, Everdigm, Montabert, Indeco, Kwanglim, General, Komac, Rammer, Konan, Teisaku, Hanwoo……and so on.The hydraulic breaker is of high quality, and the price is also very beautiful.
