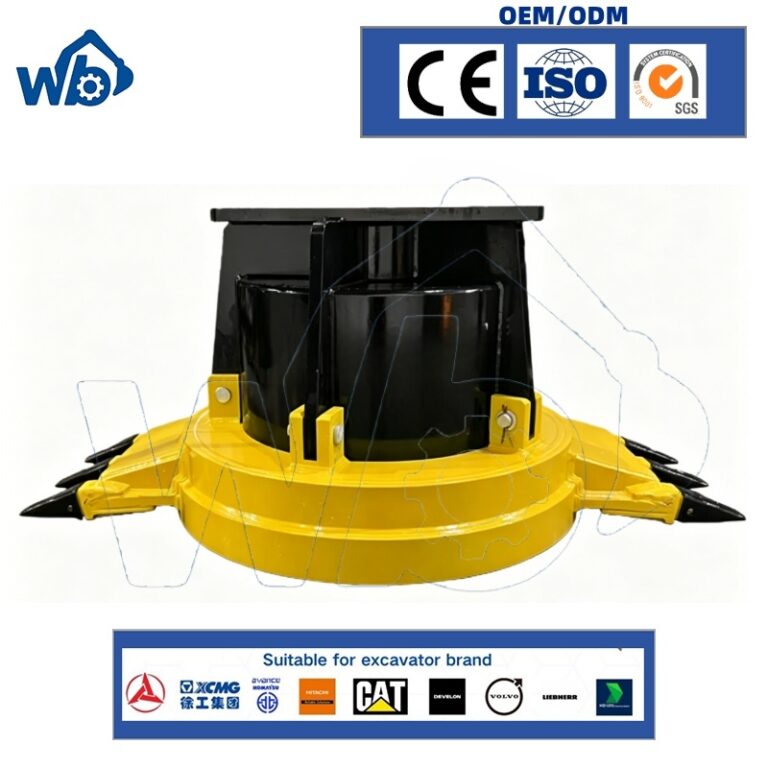

Excavator Hydraulic Lifting Magnet
- Suitable for 5–40 ton excavators.
- Powered by the excavator’s hydraulic system—no external generator or battery required.
- Provides strong and reliable magnetic force for lifting ferrous materials.
- Ideal for handling scrap steel, rebar, iron, and metal debris.
- Heavy-duty construction ensures durability and long service life.
- Widely used in recycling, demolition, scrap yards, and steel processing.
Product Description
Excavator Hydraulic Lifting Magnet for Scrap Metal Handling
The Excavator Hydraulic Lifting Magnet is a powerful hydraulic-powered attachment designed for handling, lifting, and sorting ferrous materials in demanding working environments. Unlike traditional electromagnetic magnets, it uses the excavator’s hydraulic system to generate magnetic force, eliminating the need for an external generator or battery. This makes it a more reliable, energy-efficient, and low-maintenance solution for scrap handling, demolition, recycling, and industrial applications.
Manufactured with a heavy-duty steel housing and high-performance hydraulic components, the Hydraulic Lifting Magnet delivers strong magnetic holding force, fast operation, and exceptional durability. It can also be equipped with an optional 360° hydraulic rotation for greater flexibility and precise material positioning.

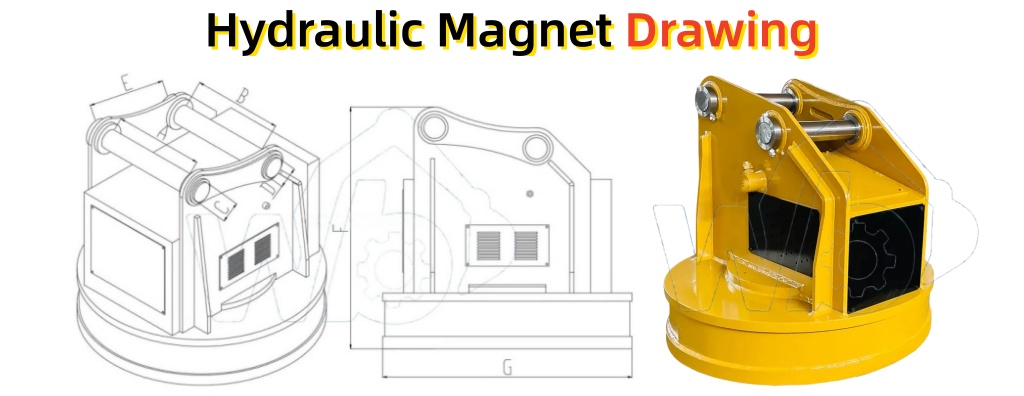

Specification
Item/Model | Unit | WB16-02 | WB16-04 | WB16-06 | WB16-08 | WB16-10 | WB16-17 | WB16-20 |
Suitable Excavator | ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 |
Power | kW | 5 | 8 | 8 | 10 | 10 | 15 | 15 |
Outer Diamete | mm | 700 | 800 | 900 | 1100 | 1200 | 1300 | 1400 |
Working Flow | lpm | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | 250-320 |
Working Pressure | bar | 170 | 180 | 190 | 200 | 210 | 250 | 250 |
Weight | kg | 1400 | 1500 | 1890 | 2000 | 2200 | 2500 | 2800 |
Key Features
- Hydraulic-Powered System – Operates directly from the excavator’s hydraulic system, eliminating the need for an external generator or battery.
- Powerful Magnetic Force – Delivers strong and stable magnetic holding power for lifting and transporting ferrous materials safely and efficiently.
- Fast Magnet Release – Quickly releases materials to reduce cycle times and improve loading and unloading efficiency.
- Heavy-Duty Construction – Manufactured from high-strength, wear-resistant steel for maximum durability in harsh working environments.
- Optional 360° Hydraulic Rotation – Enables flexible positioning and precise handling of scrap metal and steel materials.
- Wide Excavator Compatibility – Available for excavators from 3–50 tons, with customized brackets and hydraulic connections.
- Customizable Solutions – Optional magnet sizes, lifting capacities, rotation functions, mounting systems, and hydraulic configurations are available to meet different application requirements.

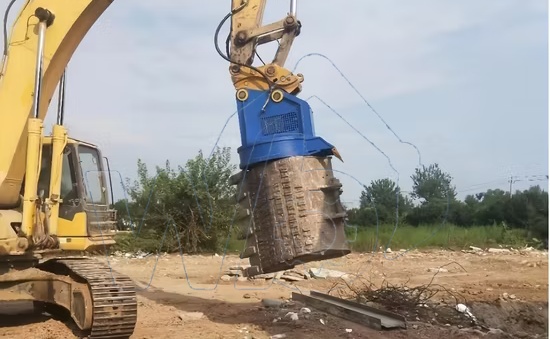

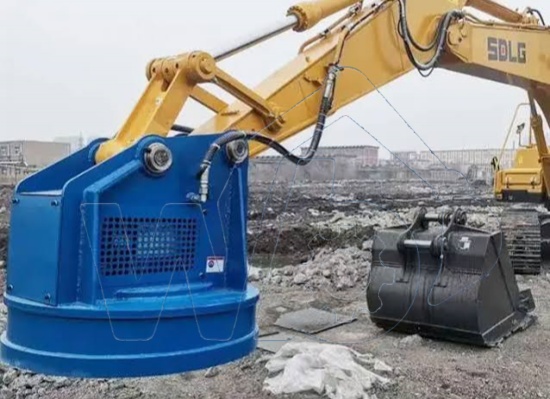

Applications
- Scrap metal recycling
- Building and industrial demolition
- Steel mills and metal fabrication plants
- Waste recycling facilities
- Port and warehouse material handling
- Railway maintenance
- Loading and unloading steel materials
