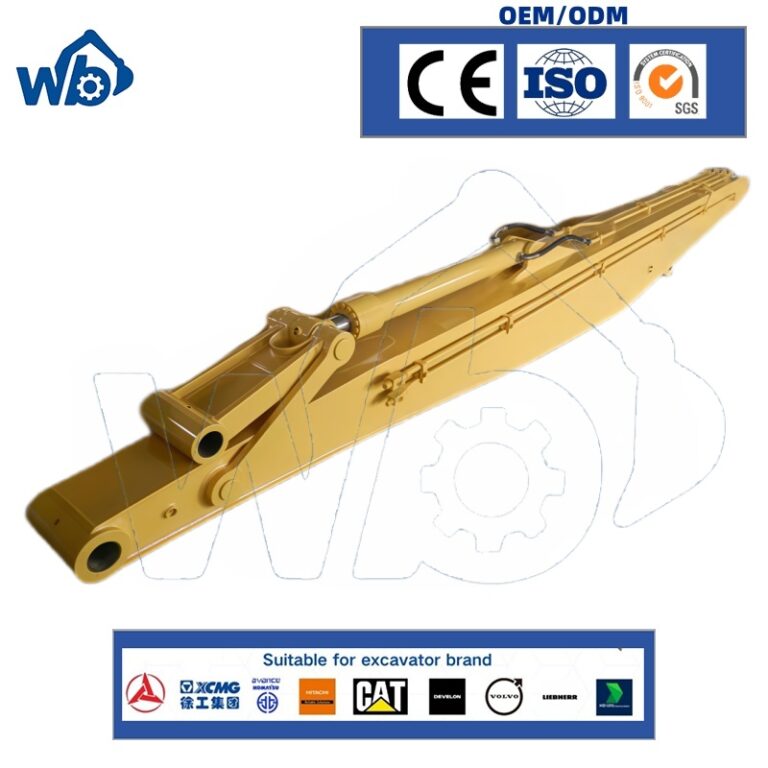

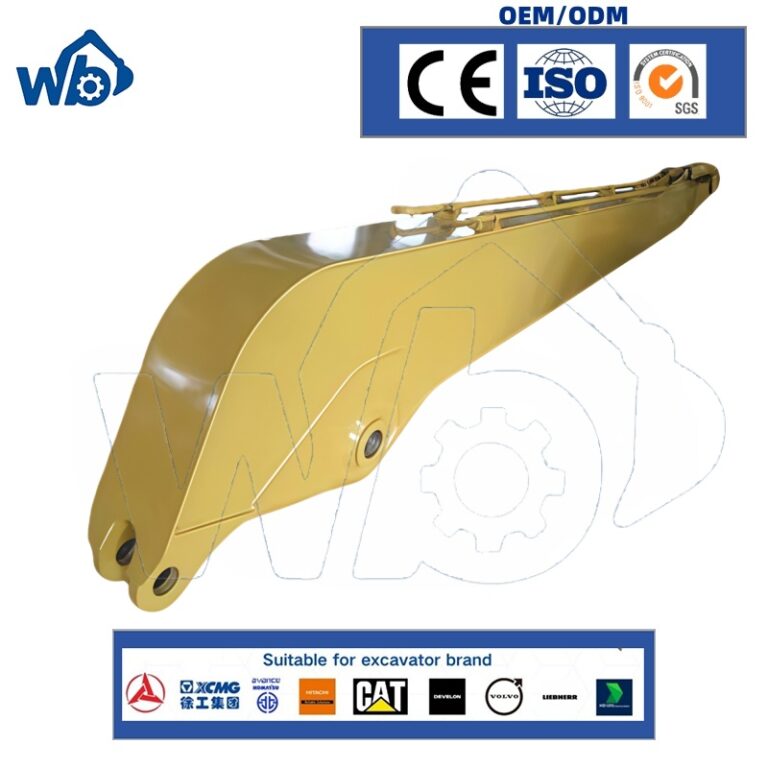

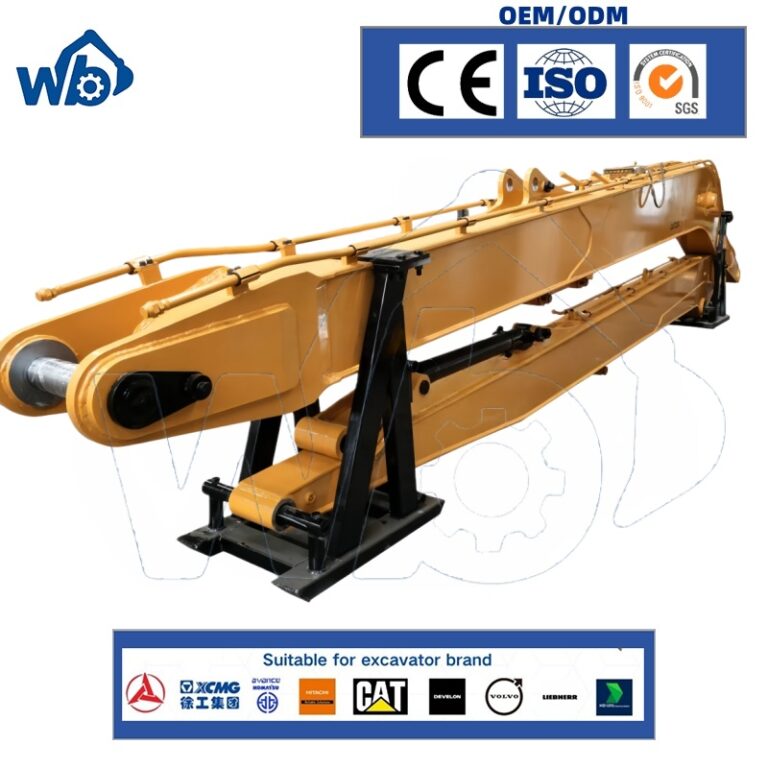

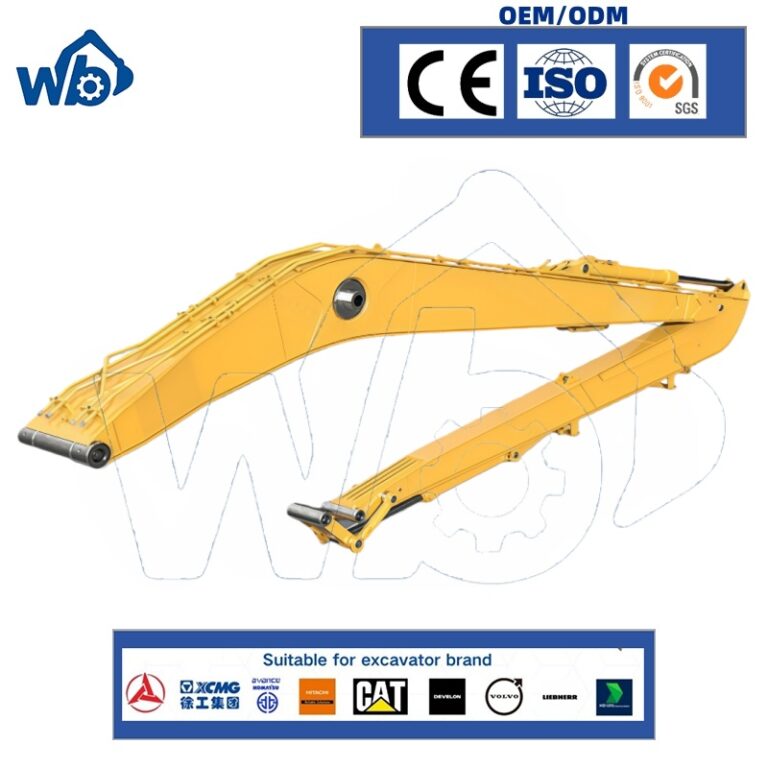

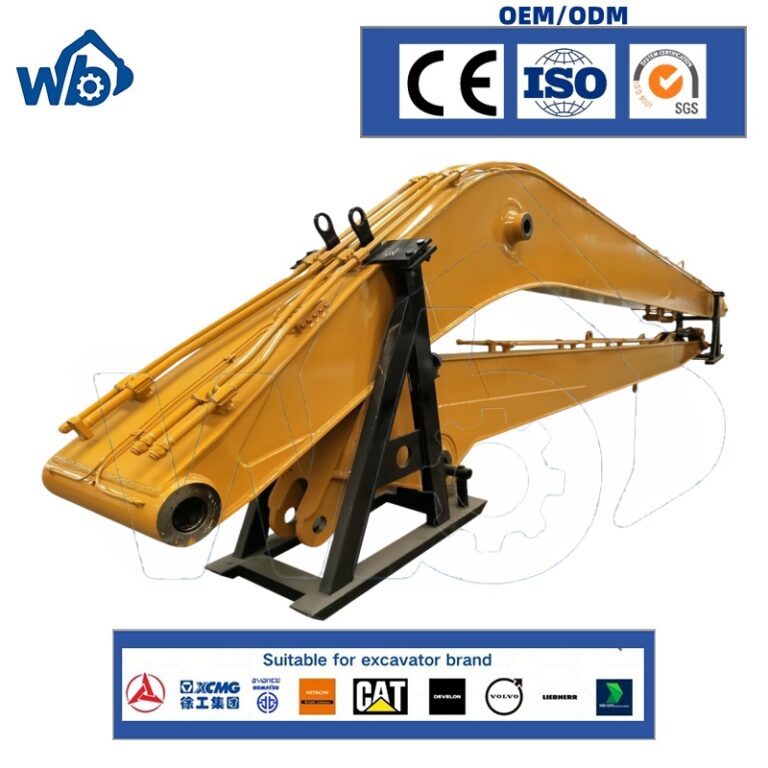

Excavator Long Reach Boom for Deep Excavation, Dredging & Extended Reach Operations
The Excavator Long Reach Boom is a specialized attachment designed to extend the working range of excavators for deep excavation, dredging, slope shaping, and long-distance material handling operations. With an extended boom and arm structure, it allows excavators to reach deeper and farther areas that standard attachments cannot access.
Manufactured from high-strength steel with reinforced structural components, the long reach boom provides excellent stability, durability, and reliable performance in demanding working environments. It is widely used in river dredging, deep foundation excavation, reservoir maintenance, and large-scale earthmoving projects.
Specification
Item/Model | WB54-02 | WB54-04 | WB54-06 | WB54-08 |
Suitable Excavator(T) | 12 | 25 | 35 | 45 |
Overall length(m) | 10 | 20 | 24 | 28 |
Weight(Ton) | 2.8 | 5.6 | 7.5 | 9.5 |
Bucket capacity(m3) | 0.2 | 0.45 | 0.6 | 0.8 |
Maximum digging height(m) | 7 | 17 | 21 | 25 |
Maximum excavation range(m) | 9 | 19 | 23 | 27 |
Maximum digging depth(m) | 6 | 16 | 20 | 24 |
Transport height(m) | 2.2 | 3.2 | 3.2 | 3.4 |
Key Features
- Extended Working Reach – Provides greater digging depth and horizontal reach for specialized operations.
- Heavy-Duty Steel Structure – Built with high-strength materials for durability and long service life.
- Reinforced Design – Ensures excellent strength and stability during extended operations.
- Optimized Weight Distribution – Maintains excavator balance and operating safety.
- Customizable Length Options – Available in different lengths according to project requirements.
- Compatible Attachments – Can be used with buckets, dredging buckets, and other excavator attachments.
- Easy Installation – Designed for various excavator models with proper hydraulic compatibility.
Applications

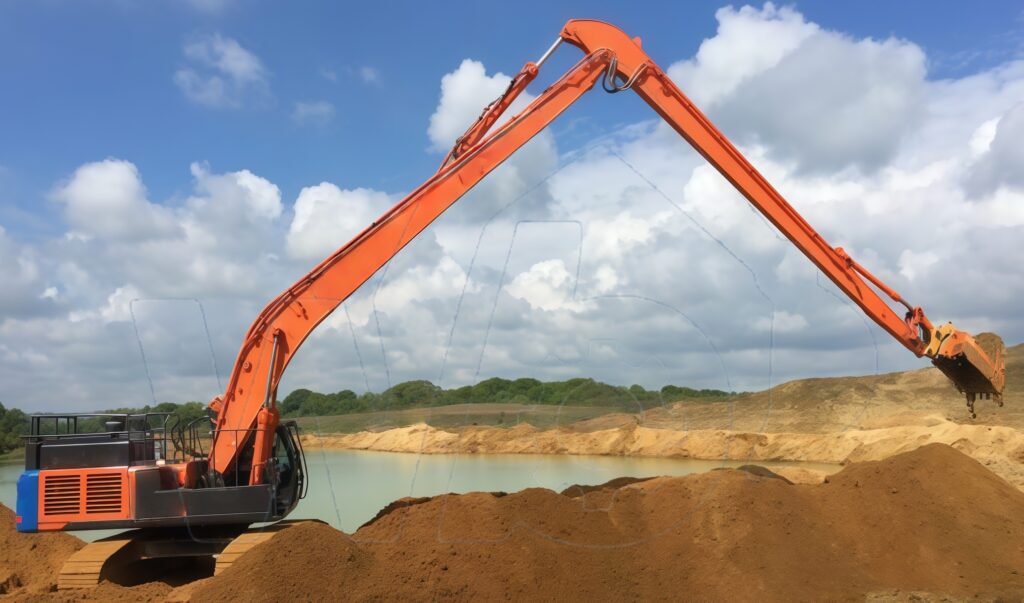

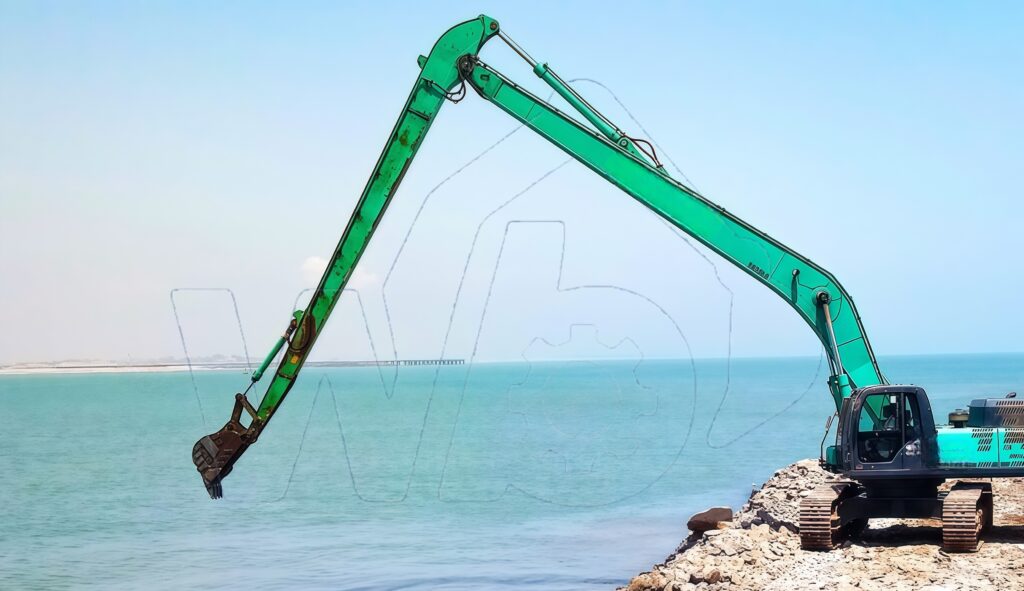

- River & Canal Dredging – Removing sediment, sand, and debris from waterways.
- Deep Foundation Excavation – Excavating deep trenches and foundations.
- Reservoir & Pond Maintenance – Cleaning and removing accumulated materials.
- Slope Construction – Shaping slopes, embankments, and terrain.
- Wetland & Marsh Operations – Working in areas with difficult access.
- Large-Scale Earthmoving – Handling soil and materials over extended distances.
- Demolition Projects – Reaching high or distant structures safely.
