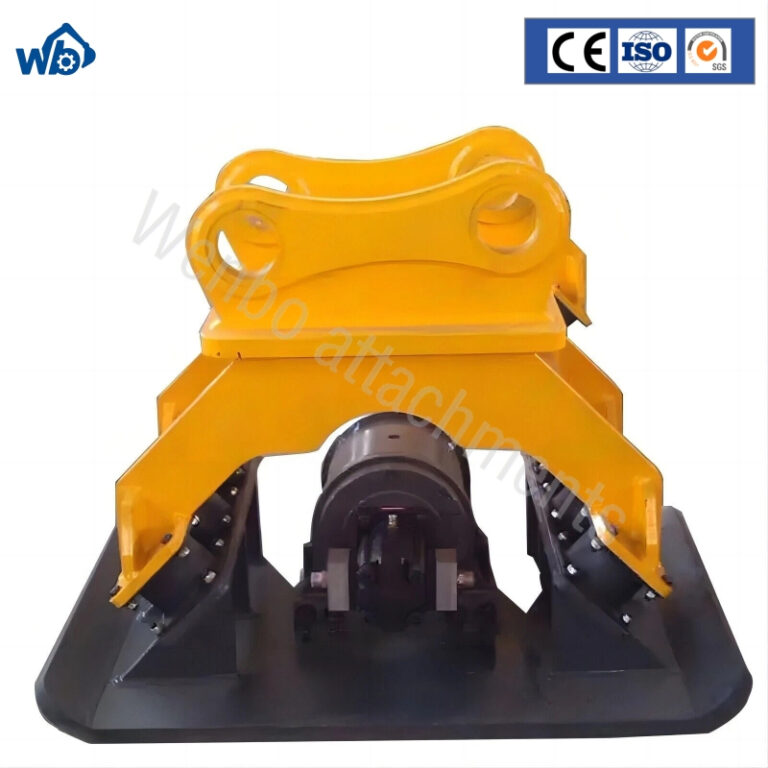

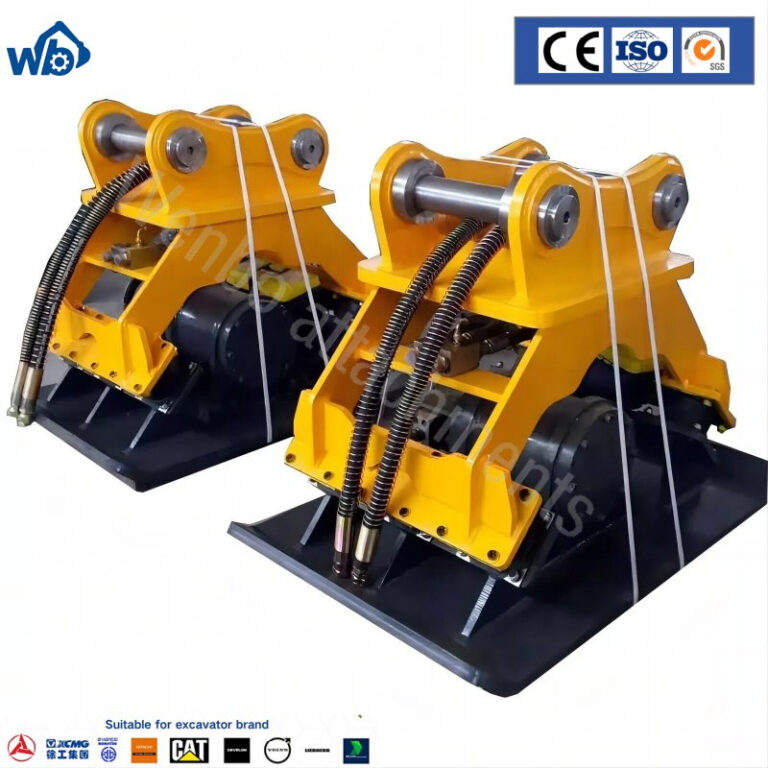

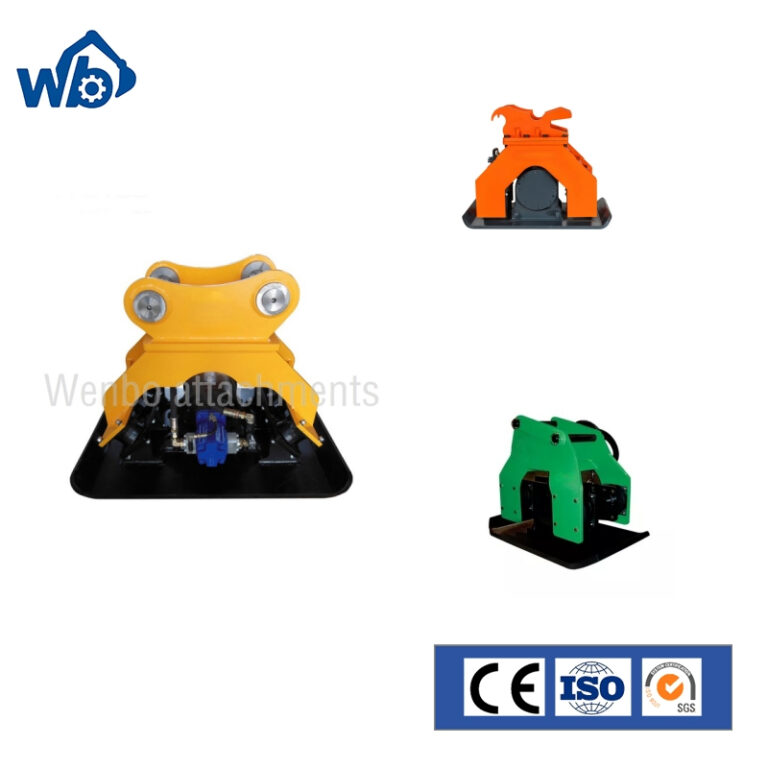

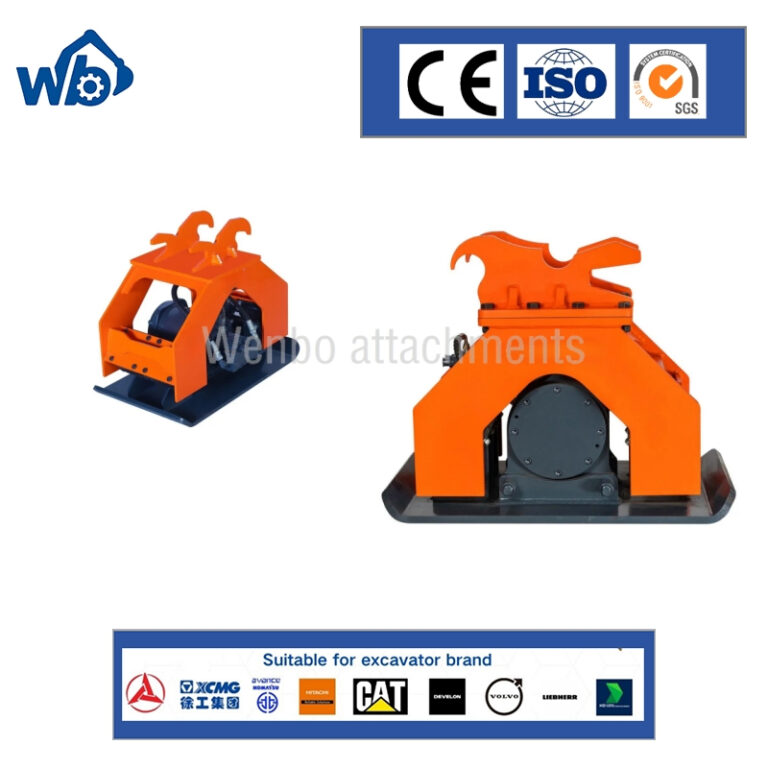

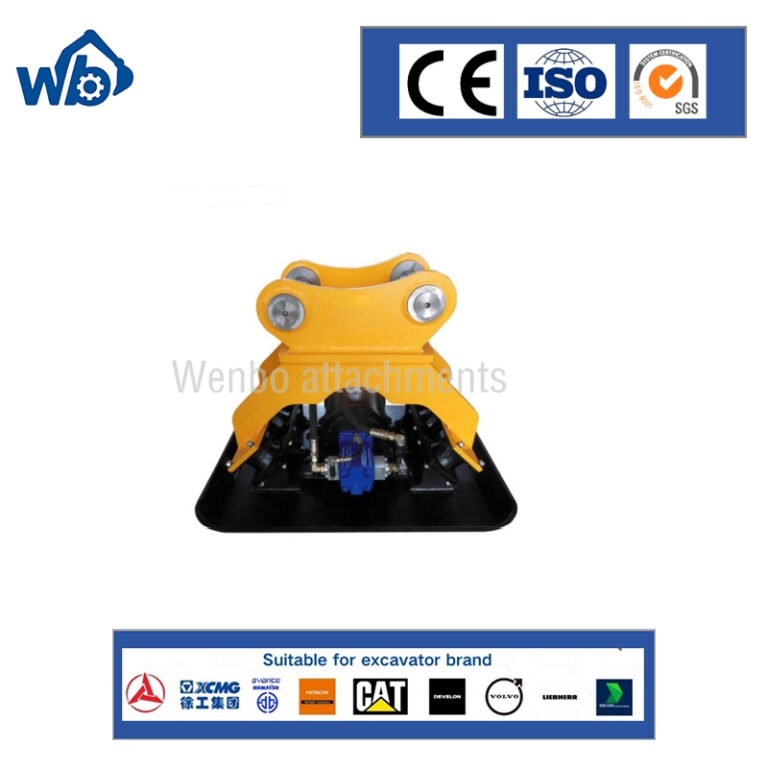

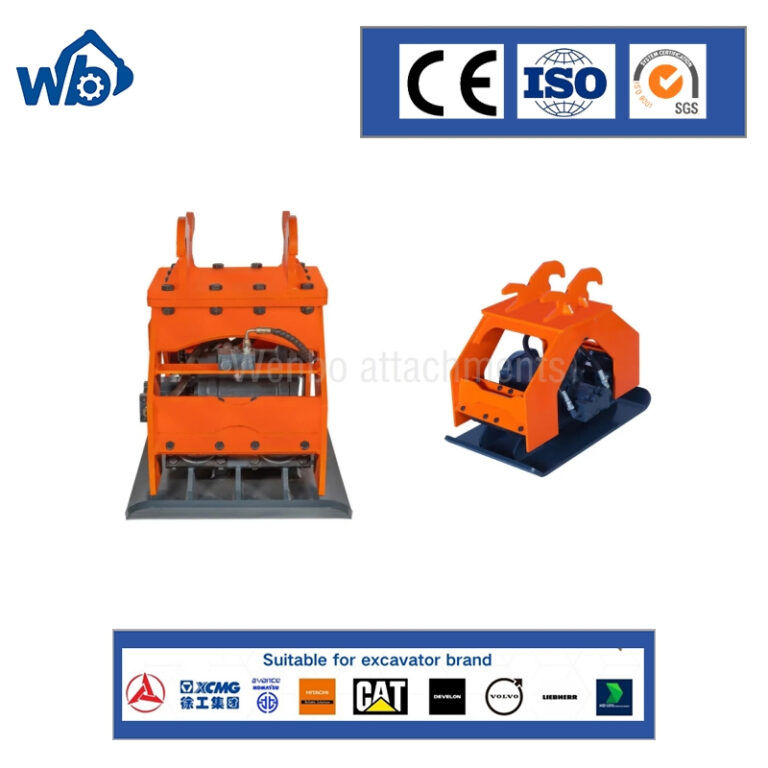

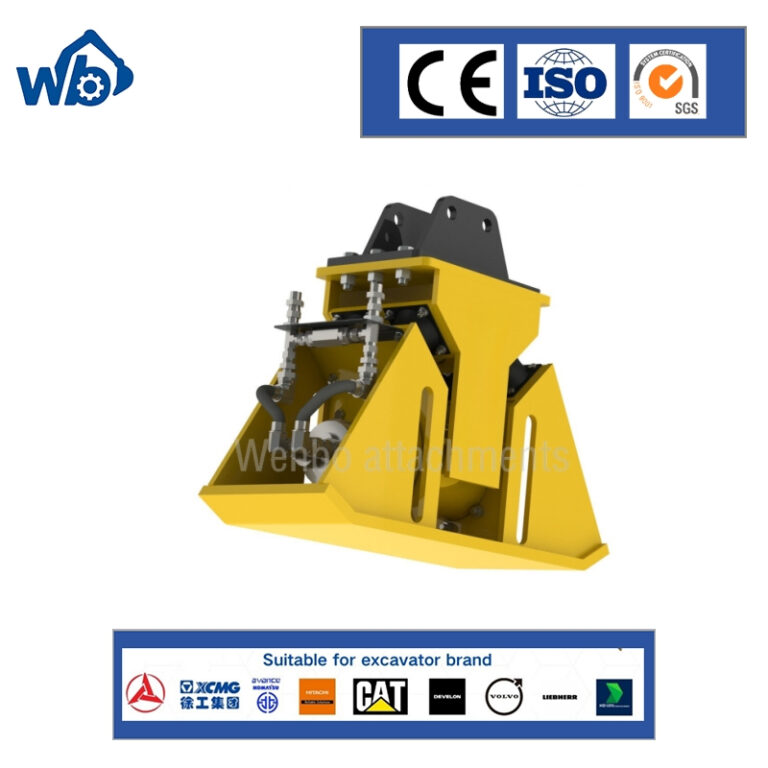

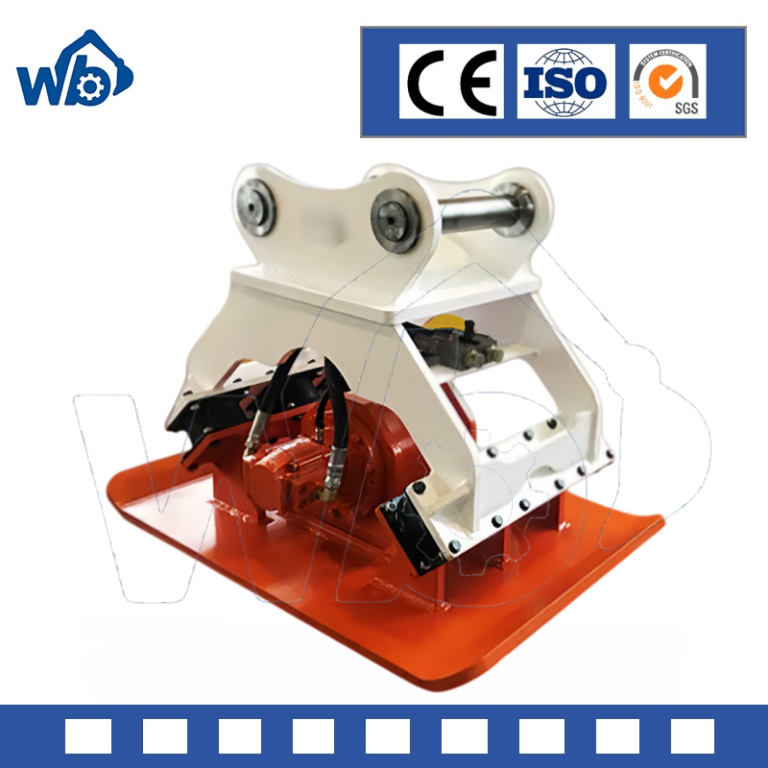

Excavator Plate Compactor
- Suitable for 1.5–40 ton excavators.
- Best For: General construction and versatile applications
- Soil Type: Sand, gravel, asphalt
- Ideal for trench compaction, foundation work, slope stabilization, and pipeline backfilling.
Product Description
Plate Compactor is mainly used in road expansion and reconstruction,urban road repair and maintenance,compaction of pipeline sides,roadside ditches and around maintenance wellheads,prevention and elimination of local collapse and settlement of roads with common facilities.
Specification
Only partial specs are shown. For more, contact our sales team with images or specifications.
Item/Model | Unit | WB18-02 | WB18-04 | WB18-06 | WB18-08 | WB18-10 |
Applicable excavator weight | ton | 2-3 | 4-9 | 10-16 | 17-23 | 24-30 |
Hitt force | ton | 3 | 5 | 10 | 15 | 15 |
Maximum vibration times | r/min | 2000 | 2000 | 2000 | 2000 | 2000 |
Oil usage | L/min | 25-40 | 45-75 | 85-105 | 120-170 | 120-170 |
pressure | kg/cm2 | 100-130 | 100-130 | 100-130 | 150-180 | 150-200 |
weight | kg | 110 | 300 | 500 | 900 | 950 |

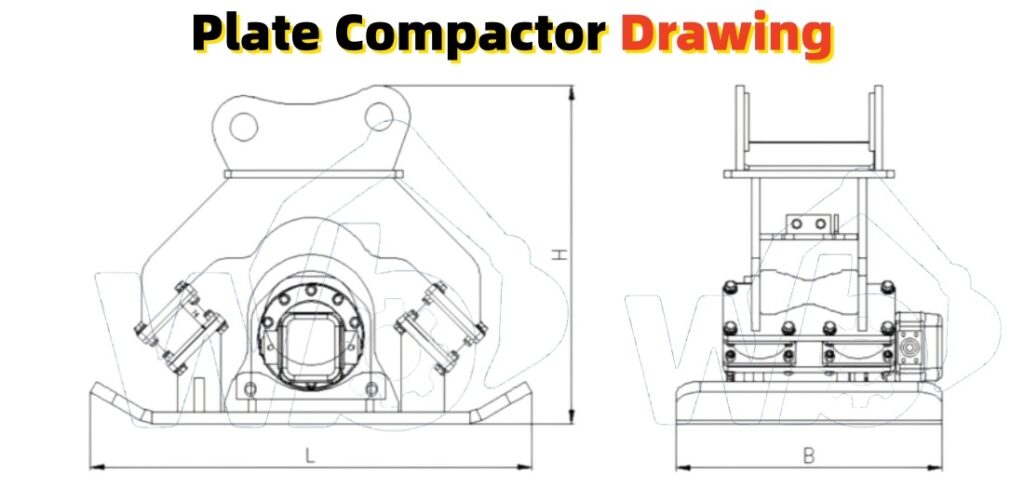

Strike Area | L*w,mm | 650*470 | 900*550 | 1000*700 | 1200*850 | 1200*850 |
Total height | mm | 600 | 760 | 920 | 1060 | 1100 |
Overall width | mm | 410 | 550 | 700 | 900 | 900 |
Product Features
1.WB plate compactor uses Q355 manganese plate steel,which is high in strength and corrosion-resistant.
2.The pin is 42CrMo alloy stee lwith built-in oil channel,which is high in strength and toughness.
3.It uses Chinese high-end brand motors or American Permco motors,which can be replaced according to customer requirements,and are durable and have strong tamping strength.
4.We have increased the thickness and area of the tamping plate,and the tamping area has increased,which is suitable for various complex terrains;Imported shock absorbers,good toughness and wear resistance.

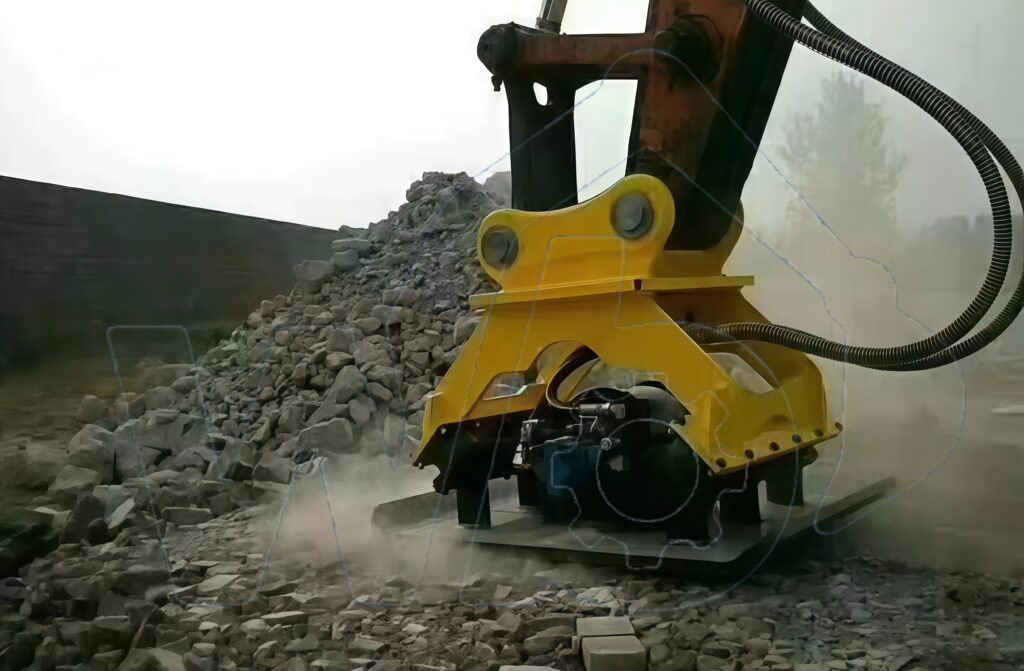

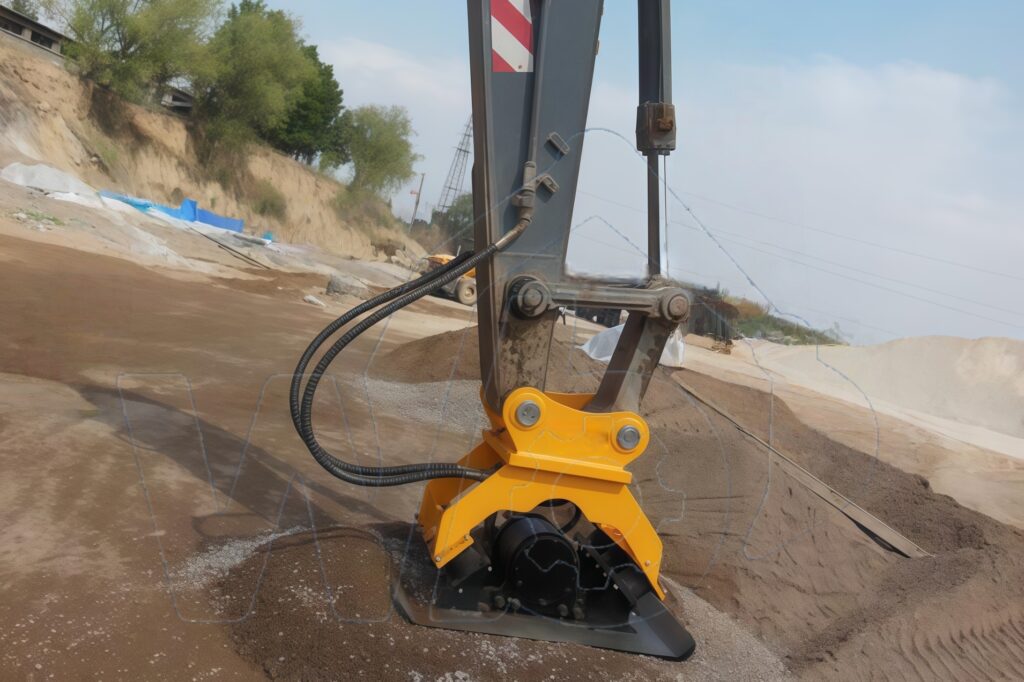

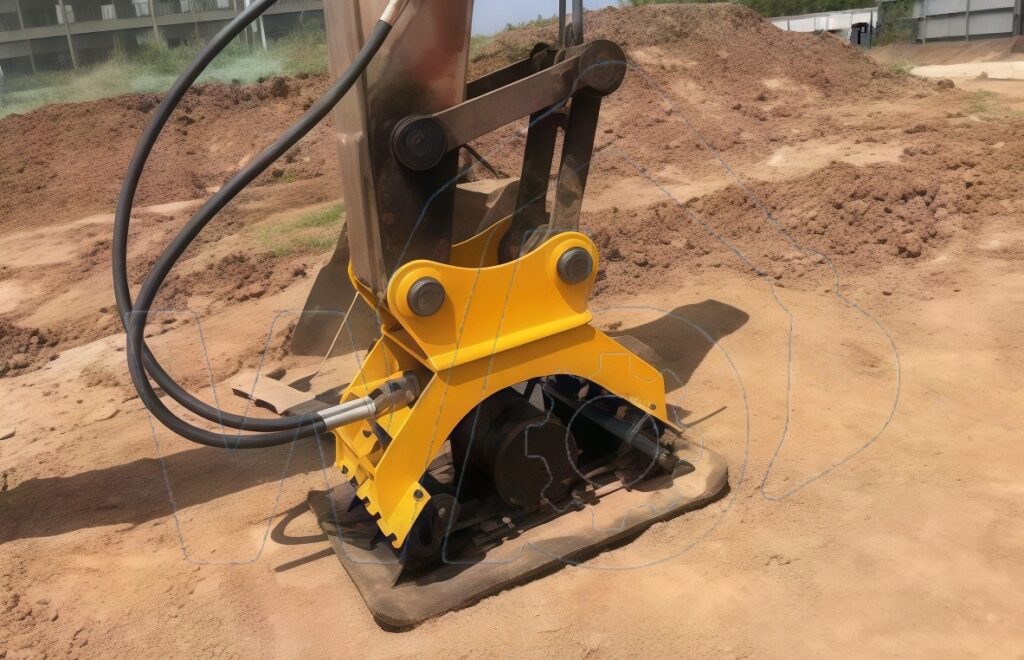

Application
- Trench Compaction – Compact backfill around pipelines, cables, and utility trenches.
- Foundation Preparation – Prepare stable ground for building foundations and concrete slabs.
- Road Construction & Repair – Compact subgrade, gravel, and asphalt patches for roads and highways.
- Slope & Embankment Compaction – Safely compact soil on slopes, banks, and embankments where rollers cannot easily operate.
- Landscaping Projects – Compact soil for gardens, parks, golf courses, and other landscaping applications.
- Pipeline Installation – Ensure proper backfill compaction around water, gas, and sewer pipelines.
- Railway Construction – Compact ballast and subgrade for railway maintenance and construction.
- Bridge & Culvert Projects – Compact fill material around bridge abutments and culverts.
- Municipal Engineering – Ideal for sidewalks, parking lots, and other public infrastructure projects.
- Confined Area Compaction – Efficiently compact soil in narrow or hard-to-reach areas inaccessible to larger compaction equipment.
- Demolition Site Backfilling – Compact recycled materials and backfill after demolition work.
- Mining & Quarry Operations – Compact haul roads, access roads, and site preparation areas.
