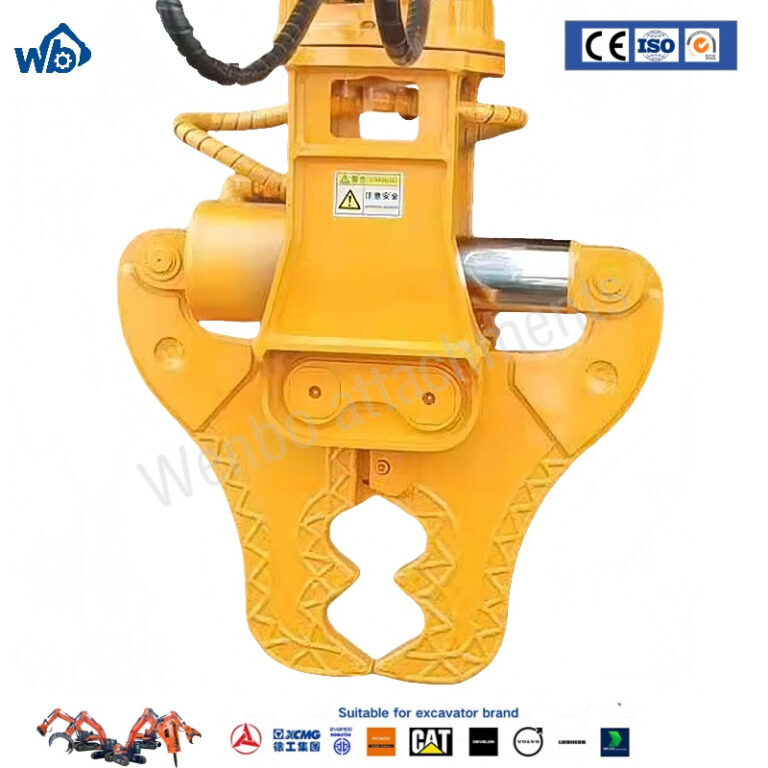

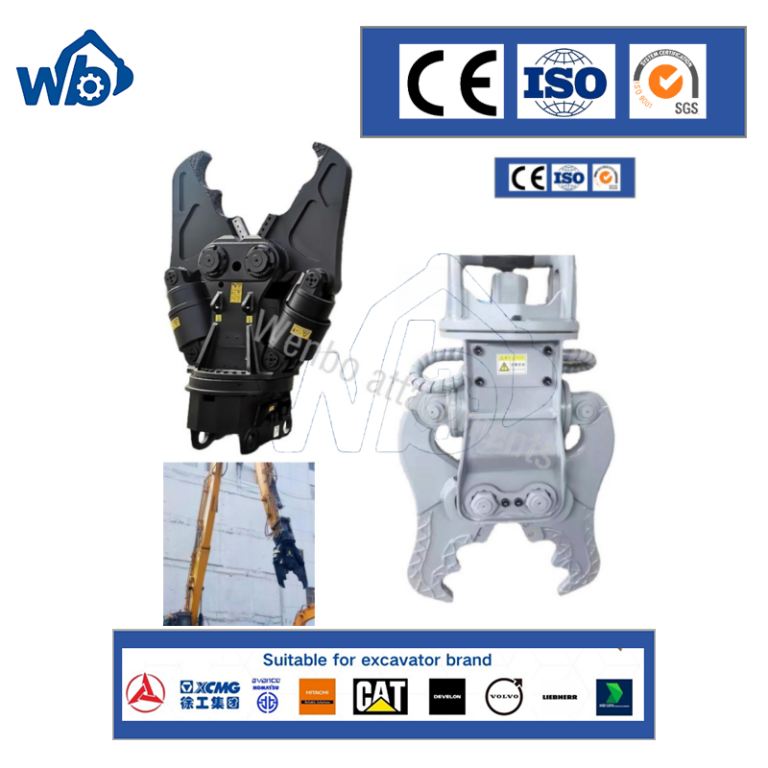

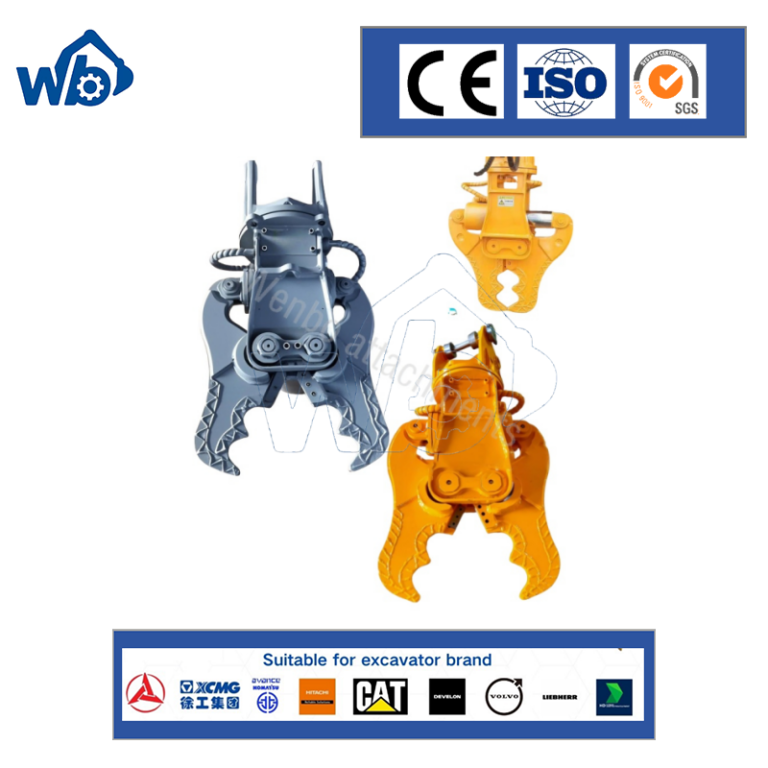

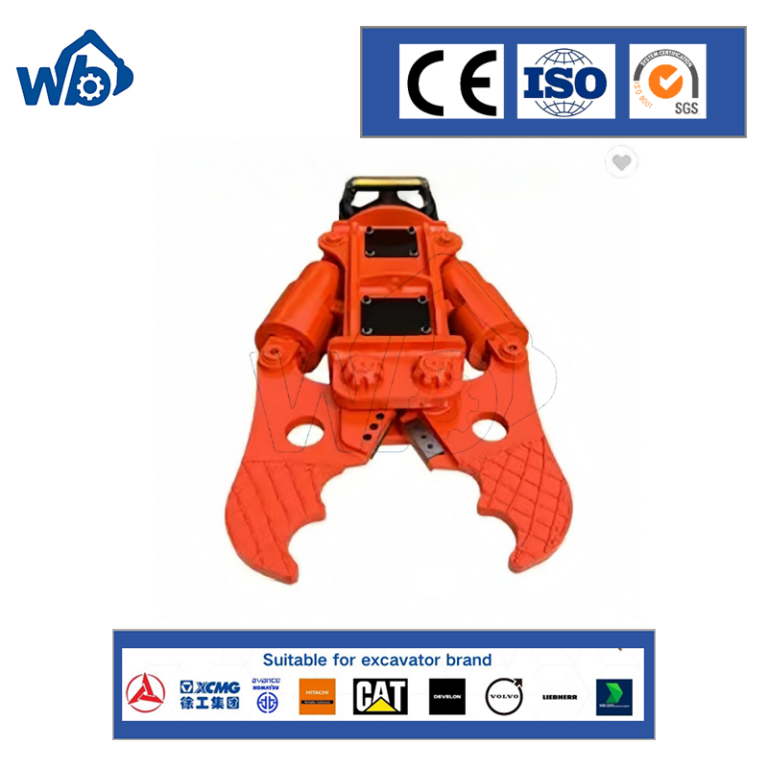

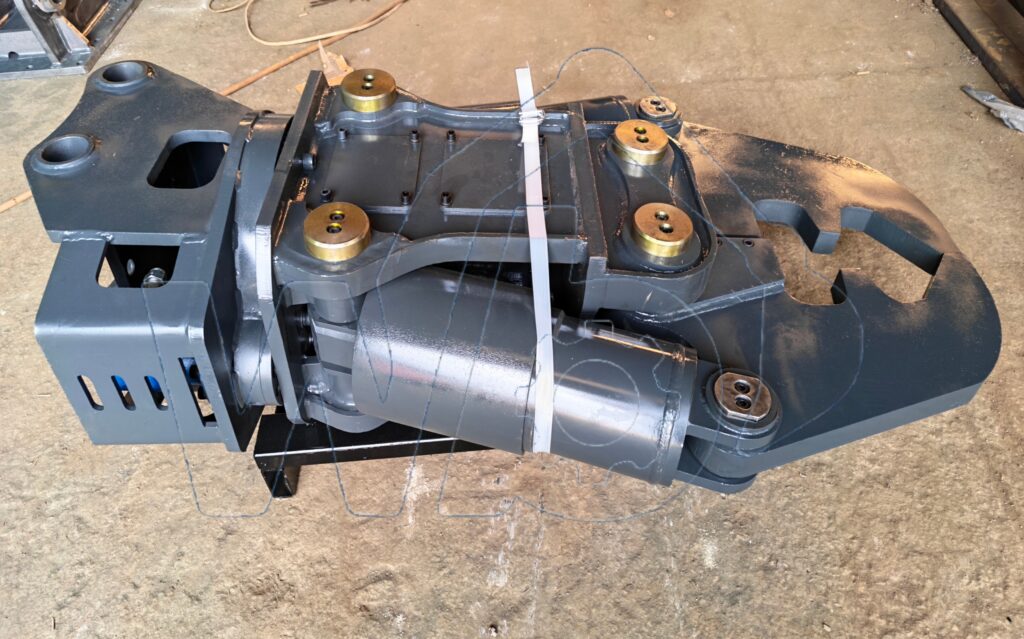

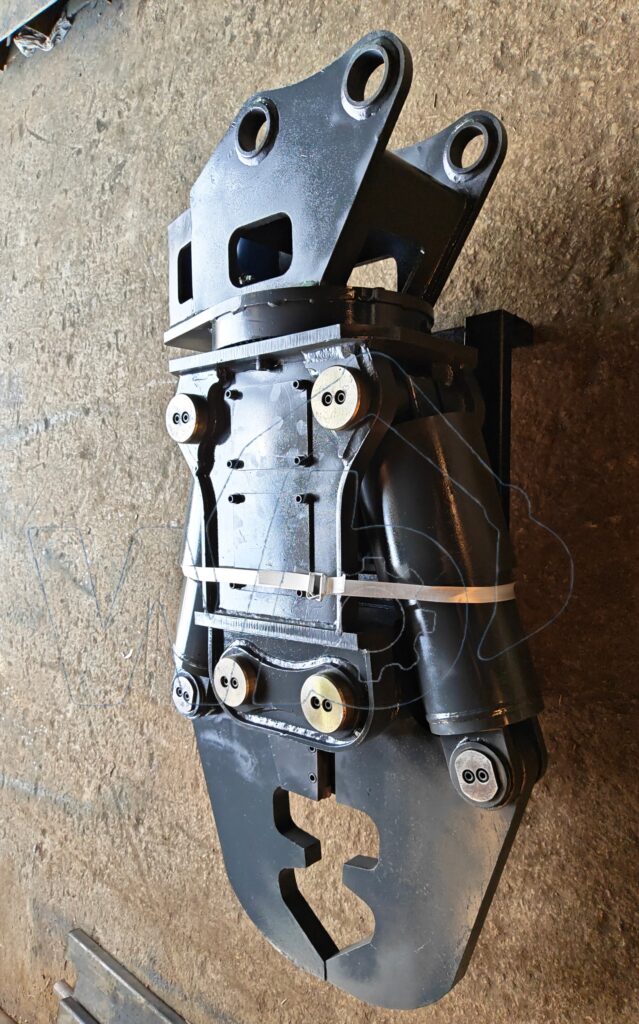

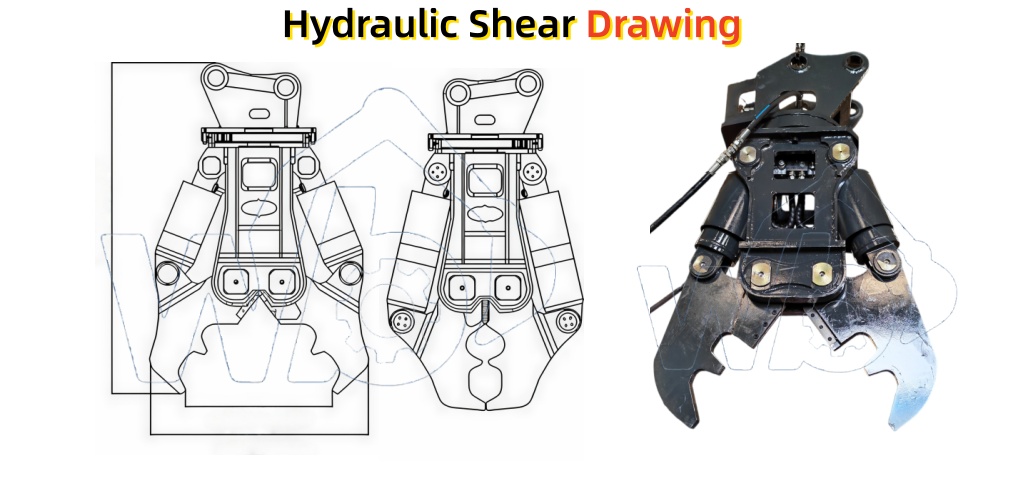

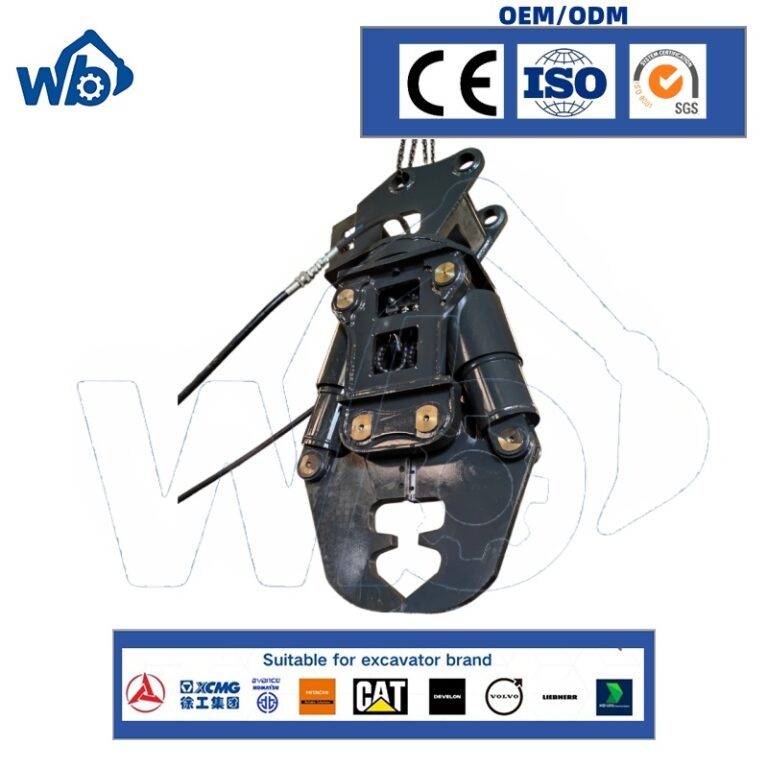

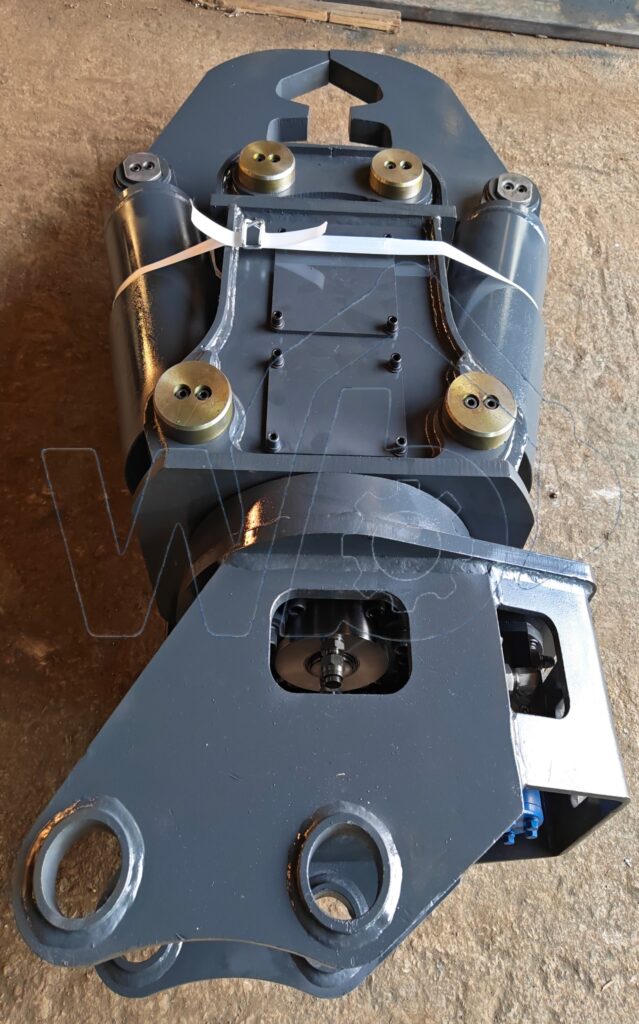

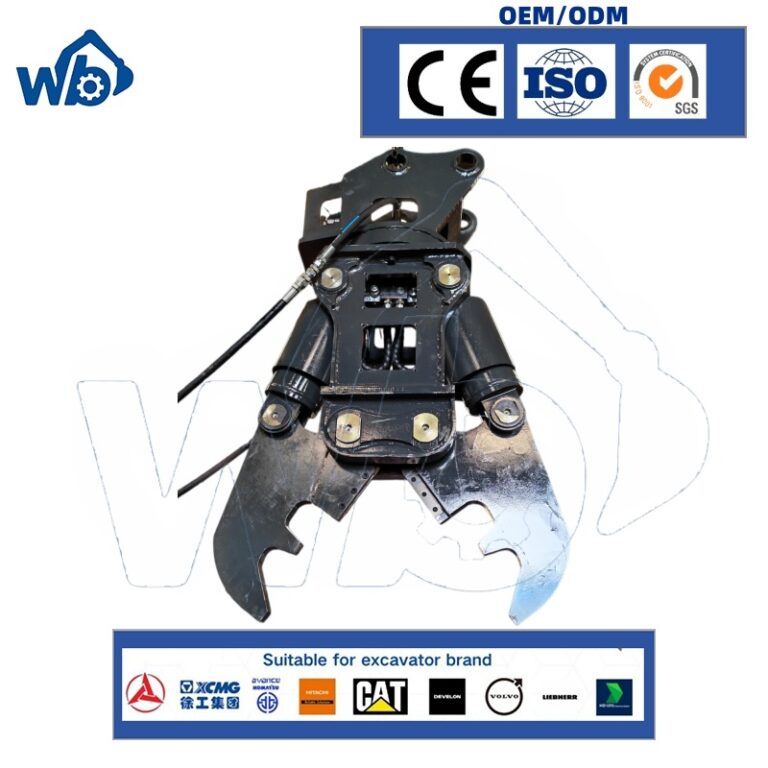

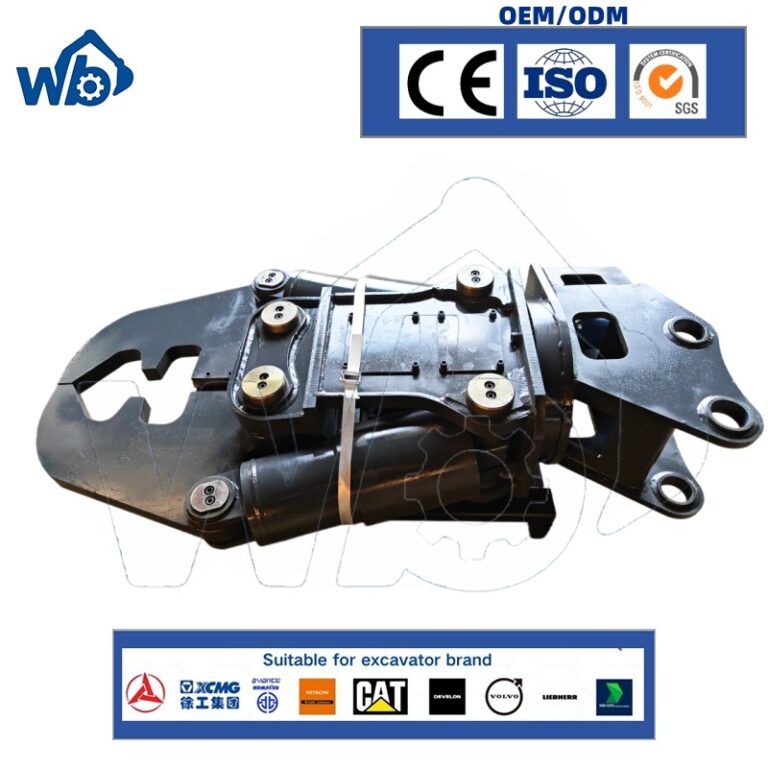

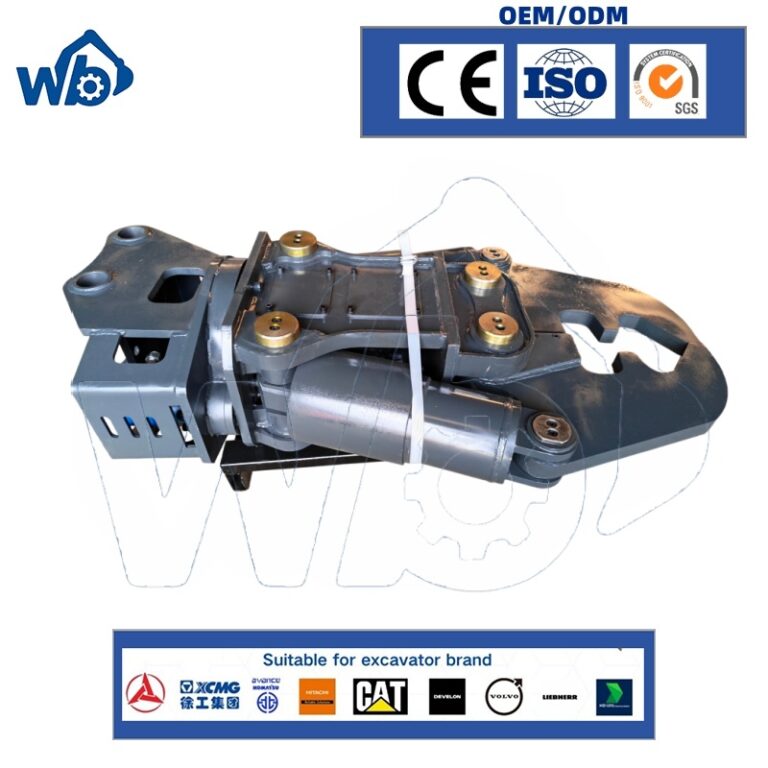

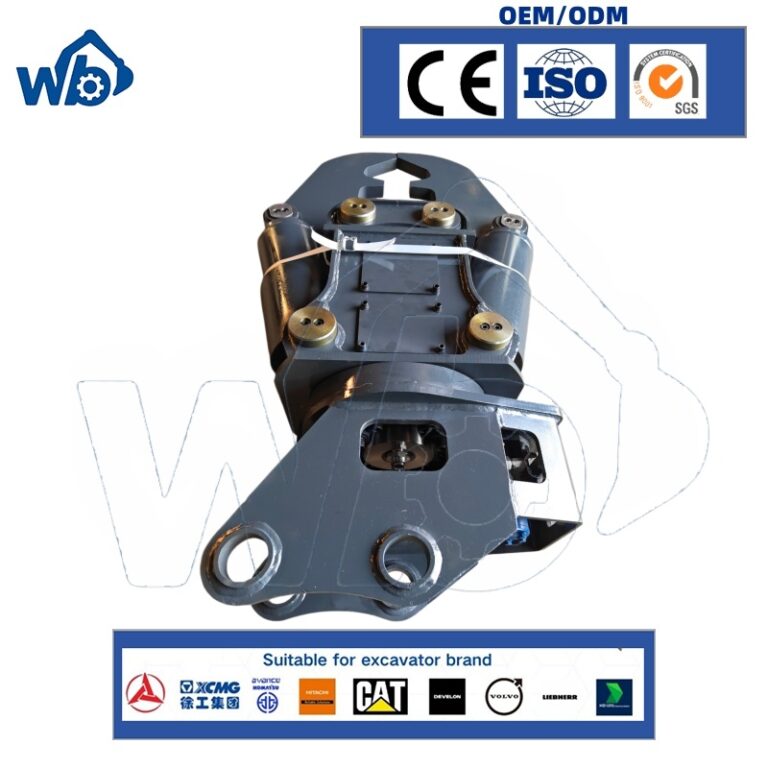

Hydraulic Shear
- Suitable for 5–50 ton excavators.
- Designed for demolition, steel cutting, scrap processing, and structural dismantling.
- Powerful hydraulic cylinders deliver high cutting force and fast cycle times.
Product Description
The Hydraulic Shear is a powerful excavator attachment designed for cutting and dismantling tough materials. With its robust structure and strong hydraulic force, it provides exceptional cutting performance in demanding applications.The Hydraulic Shear is widely used in building demolition, scrap metal recycling, mechanical processing, steel manufacturing, rescue work and other fields.
Specification
Item/Model | Unit | WB03-MINI | WB03-02 | WB03-04 | WB03-06 | WB03-08 | WB03-10 |
Excavator weight | ton | 1.5-3 | 4-6 | 7-11 | 12-17 | 18-27 | 28-38 |
OpeningA | mm | 300 | 630 | 630 | 850 | 1050 | 1100 |
highB | mm | 835 | 1400 | 1400 | 1800 | 2200 | 2300 |
Crushing force | ton | 18 | 34 | 34 | 640 | 84 | 92 |
Crushing force | ton | 25 | 51 | 51 | 90 | 127 | 142 |
Crushing force | ton | 65 | 141 | 141 | 28 | 300 | 350 |
Working pressure | MPa | 21 | 20-25 | 20-26 | 25-30 | 25-30 | 25-30 |
Round steel symbol | mm | 14 | 16 | 16 | 25 | 30 | 35 |
Weight | kg | 200-210 | 550-600 | 600-650 | 1200-1300 | 1800-2000 | 2200-2300 |
Product Features
1.High Cutting Power

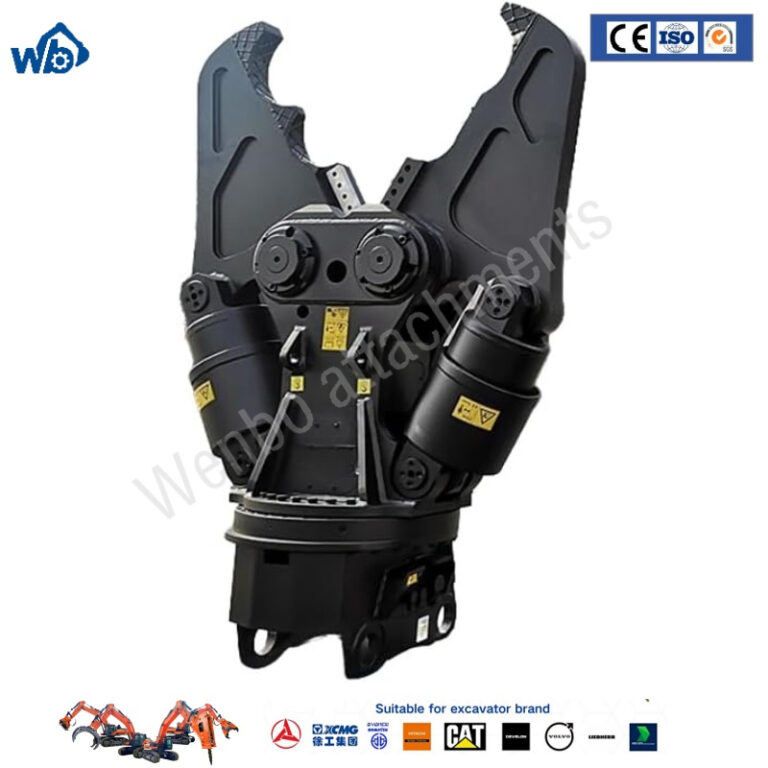

Double cylinder design, strong shear force and high efficiency.
2.Precision Operation
Special slewing support and imported motor are used, which are flexible to operate and stable in performance.Sharp blades ensure clean and accurate cuts, reducing secondary processing.
3.long service life
The cylinder adopts honing tube and imported NOK oil seal, which has short opening and closing cycle and long service life.
4.Durable Construction
The shear body adopts NM500 wear-resistant alloy steel, which is resistant to high temperature, deformation, good toughness and more wear-resistant.
5.Versatility
Suitable for demolition, scrap processing, and recycling industries.
Applications

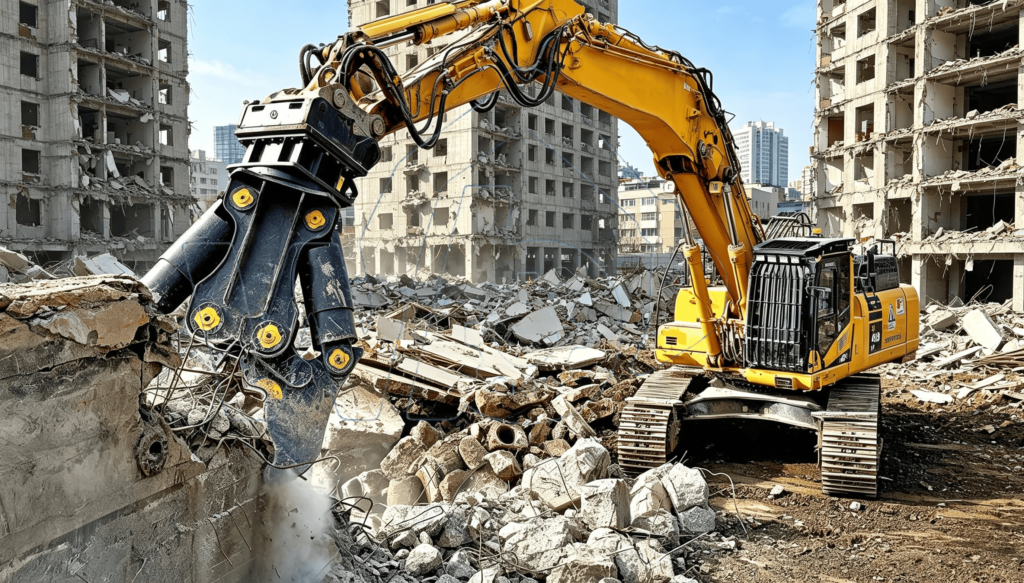

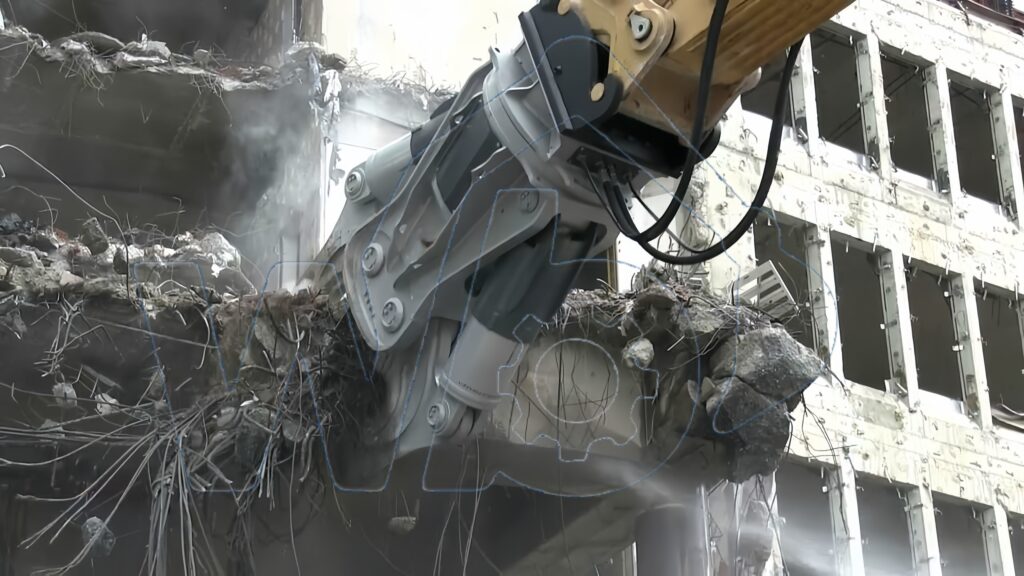

1.Demolition Work

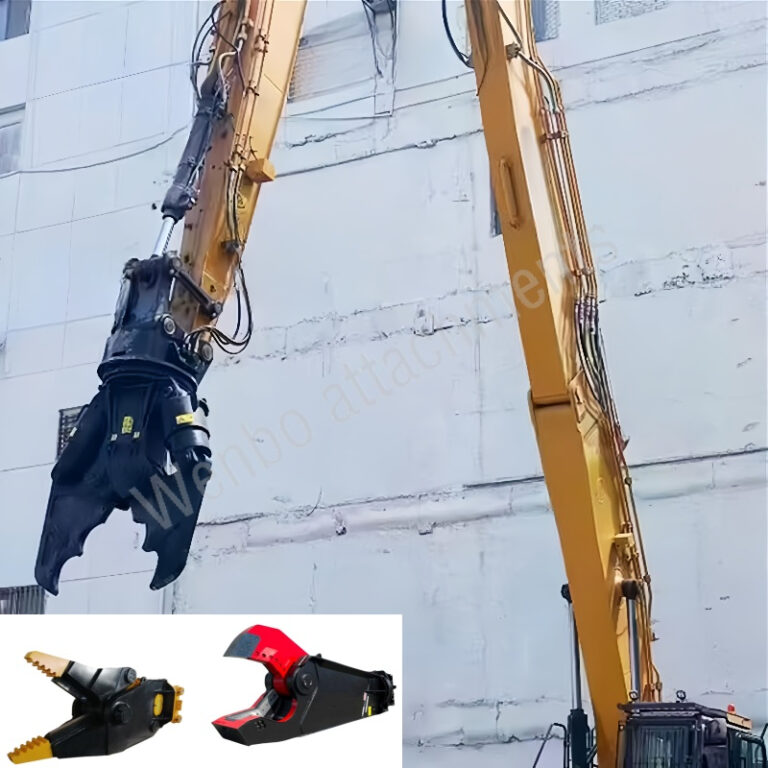

Cutting steel beams, pipes, and structures during building demolition.
2.Scrap Yard Operations
2.Scrap Yard Operations
Processing scrap metal for recycling and transportation.
3.Recycling Industry
3.Recycling Industry
Efficiently reducing material size for further processing.
4.Industrial Dismantling
4.Industrial Dismantling
Dismantling machinery, vehicles, and heavy equipment.
