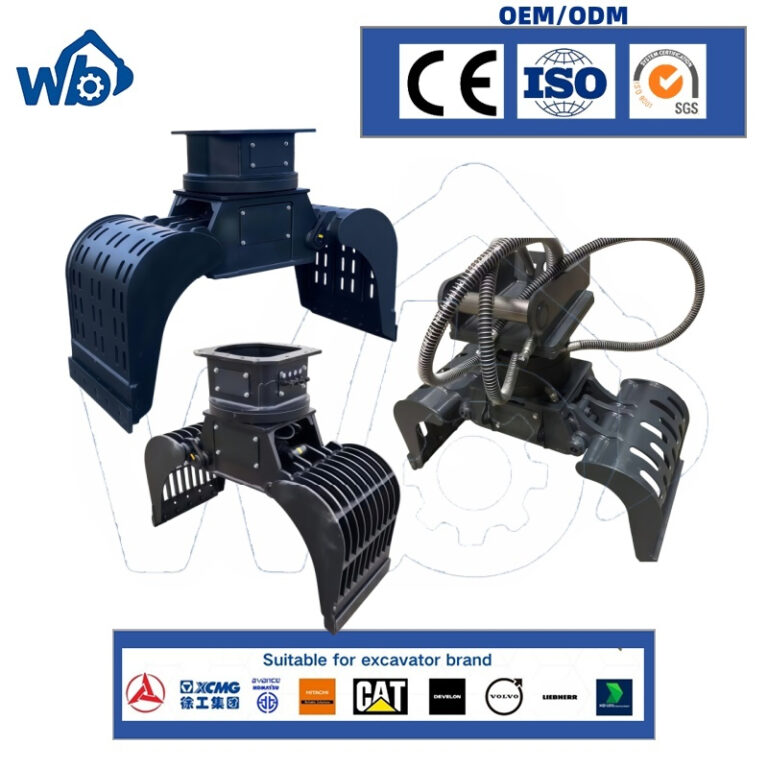

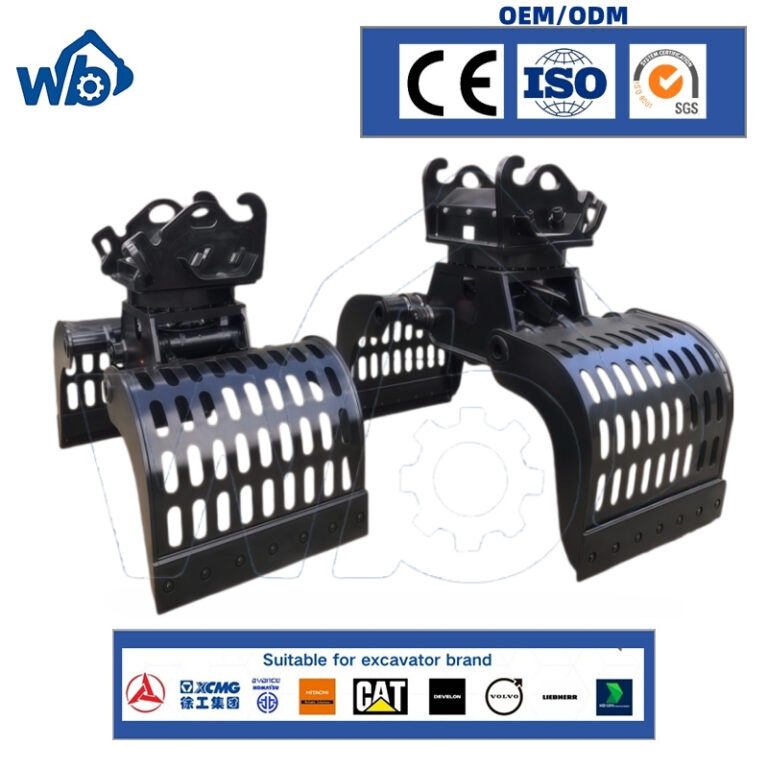

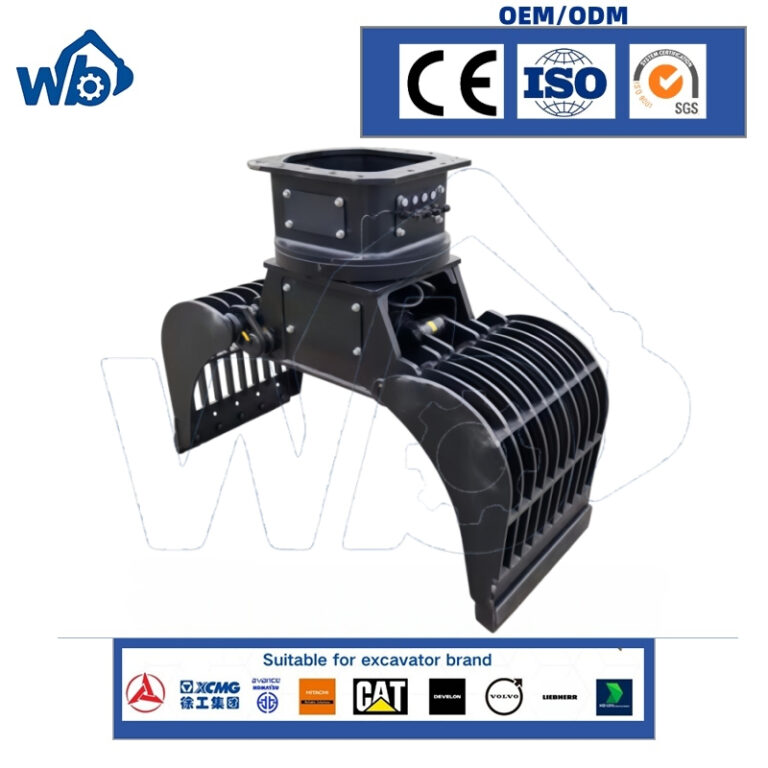

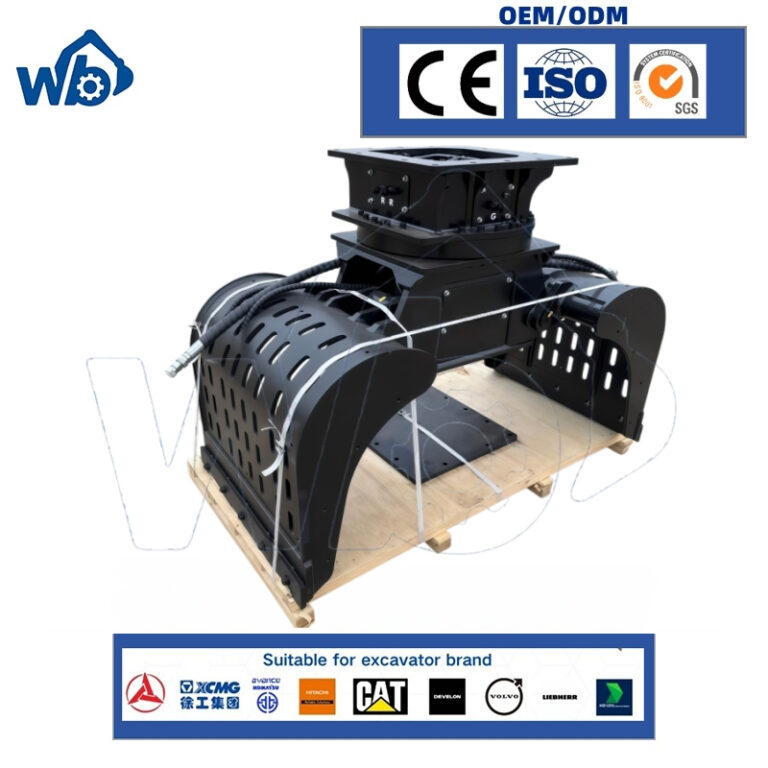

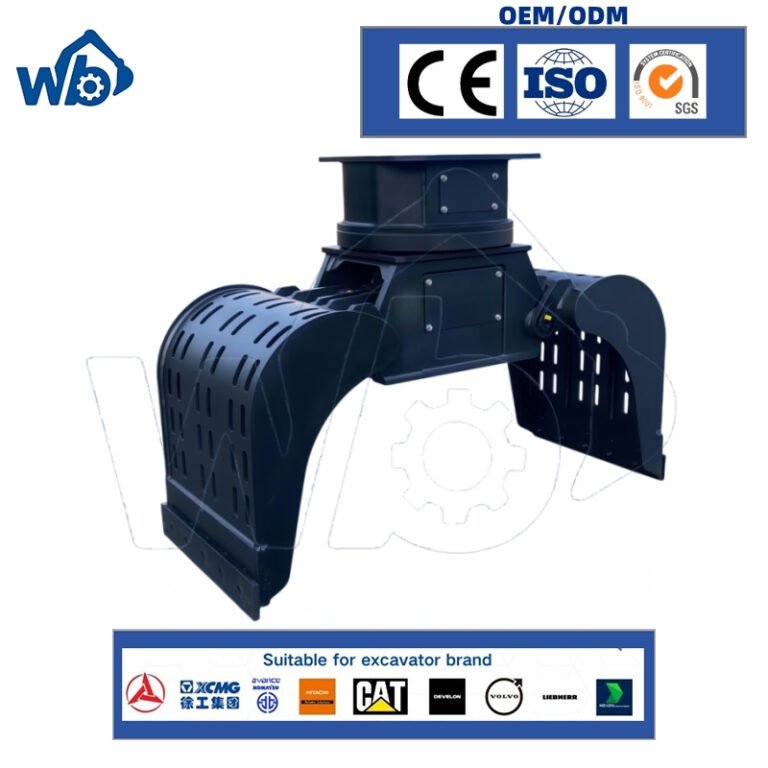

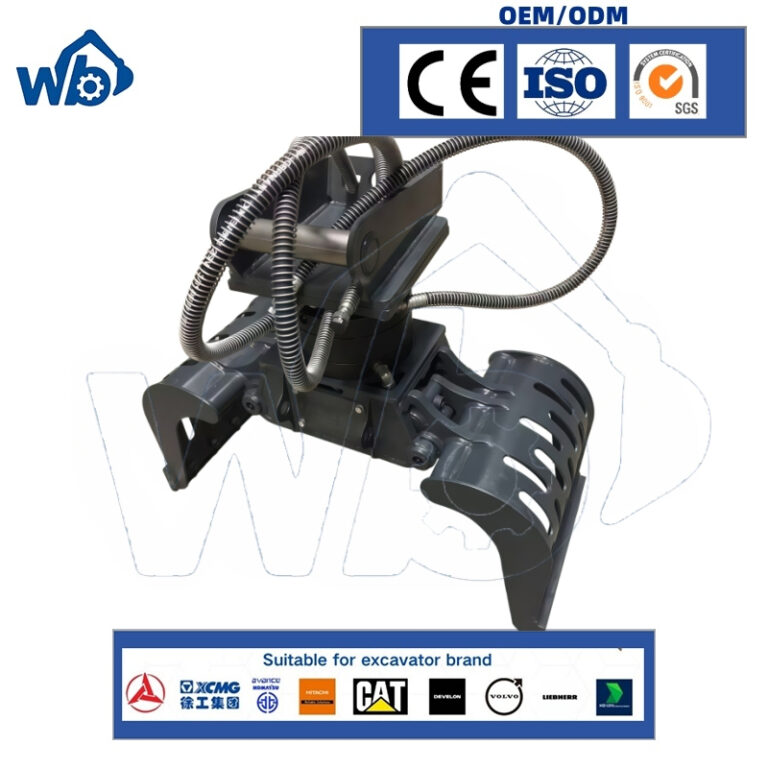

Excavator Sorting Grab
- Suitable for 5–50 ton excavators.
- Designed for material sorting, demolition, recycling, and timber handling.
- Provides precise grabbing and excellent load control.
- 360° hydraulic rotation enables flexible operation from any angle.
- High-strength steel construction ensures durability and long service life.
- Ideal for handling scrap metal, concrete, wood, and mixed materials.
Product Description
Specification
| Item/Model | WB10-00 | WB10-OOV | WB10-01 | WB10-02 | WB10-04 | WB10-06 | WB10-08 | WB10-10 |
| Suitable Excavator(t) | 1-2 | 2-3 | 3-4 | 4-6 | 6-9 | 12-16 | 17-25 | 26-35 |
| Rotation Angle(°) | / | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Motor Pressure (kg/cm) | 90-110 | 90-110 | 90-110 | 110-120 | 110-120 | 130-150 | 130-150 | 130-150 |
| Necessary Flow(lpm) | – | 20-35 | 20-35 | 30-55 | 30-55 | 40-70 | 40-70 | 40-70 |
| Cylinder Pressure (kg/cm²) | 110-140 | 110-140 | 110-140 | 160-200 | 160-200 | 180-230 | 180-230 | 200-250 |
| Operating Flow(lpm) | 5-15 | 5-15 | 25-40 | 30-55 | 50-100 | 90-110 | 100-140 | 130-160 |

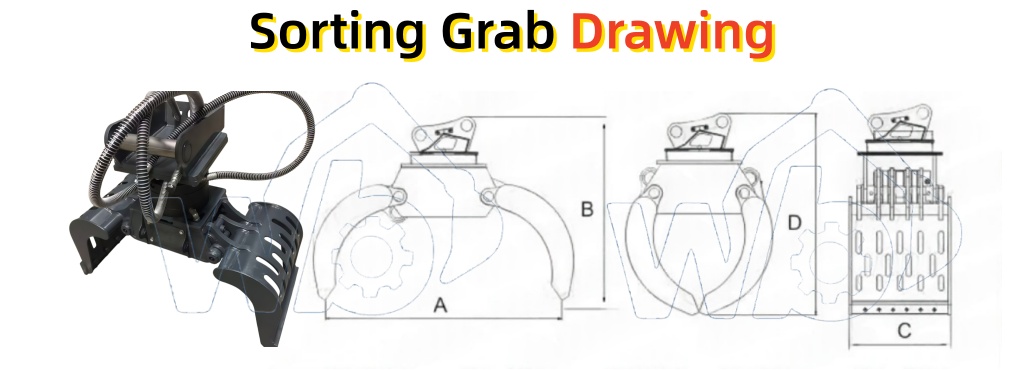

| Open Width A(mm) | 770 | 850 | 1160 | 1400 | 1500 | 1700 | 1950 | 2400 |
| Width C(mm) | 350 | 425 | 450 | 500 | 600 | 800 | 1030 | 1200 |
| Depth E(mm) | 205 | 250 | 326 | 437 | 440 | 445 | 530 | 652 |
| Oil Cylinder Flow (L/min) | 5-15 | 5-15 | 15-30 | 20-40 | 25-50 | 40-60 | 80-100 | 130-160 |
| Capacity(Closed) (m³) | 0.029 | 0.053 | 0.09 | 0.15 | 0.2 | 0.34 | 0.6 | 1.01 |
| Weight (kg) | 70 | 92 | 200-220 | 310-330 | 440-460 | 900-960 | 1350-1500 | 1700-2100 |

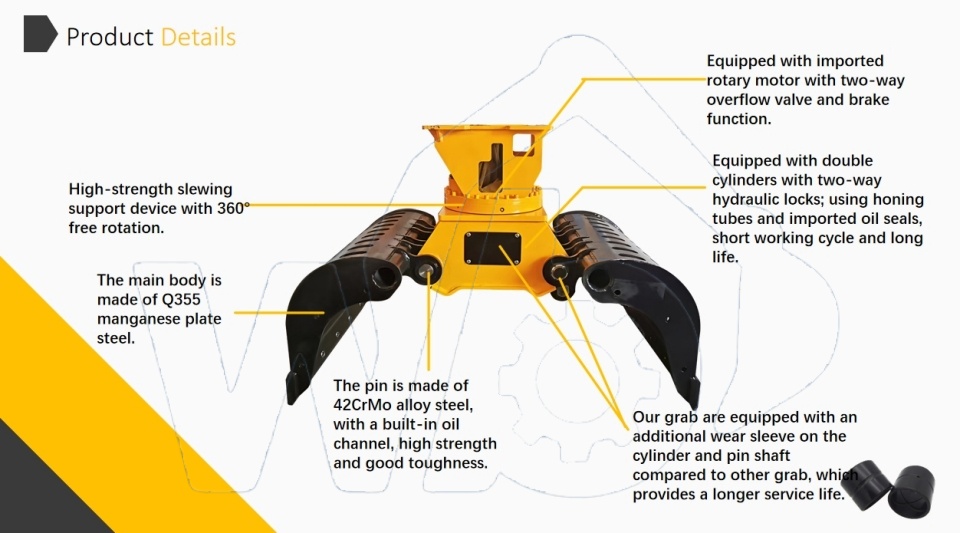

Product Features
1. Powerful Gripping Force: Designed to handle heavy materials and large objects, suitable for various complex work environments.
2. High Durability: Made from wear-resistant alloy steel, ensuring a longer service life and enhanced impact resistance.
3. Versatility: Capable of grabbing materials of various shapes and sizes, widely used in construction demolition, waste disposal, and mining operations.
4. Optimized Structure: Reinforced structure ensures gripping precision and stability, ideal for high-frequency, heavy-load operations.
5. Easy Installation: Quickly mounts on excavators of various models, meeting diverse operational needs.
The sorting grab is an ideal tool for significantly improving work efficiency and reducing operating costs, suitable for a variety of industries and complex work environments.

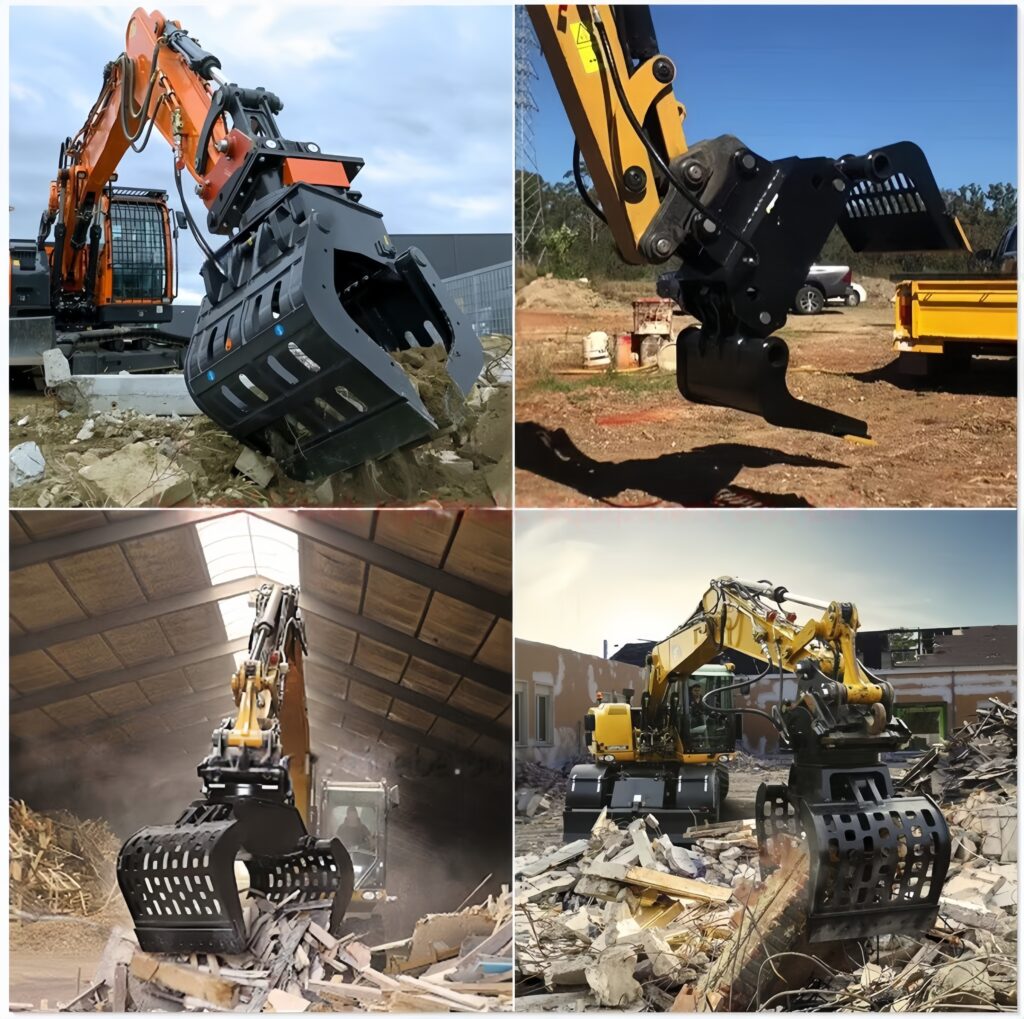

Applications
Demolition & Construction Waste Sorting
Ideal for sorting concrete fragments, bricks, steel bars and wooden debris on demolition sites, separating recyclable materials from construction waste for easy loading and transportation.
Scrap Metal & Waste Recycling Yard
Perfect for grabbing and sorting scrap iron, aluminum, waste vehicle dismantling parts and miscellaneous metal scraps. It helps stack and load recycled materials efficiently in recycling stations and steel mills.
Municipal Solid Waste Disposal
Sorts domestic garbage, plastic bags, cartons and other recyclable waste in landfill sites and waste sorting centers, greatly cutting manual sorting workload.
Timber & Forestry Handling
Used for grabbing, stacking and transporting logs, tree branches, trimmings and garden waste in forest farms, lumber yards and landscaping projects.
Quarry & Mine Material Separation
Classifies irregular stones, tailings and ore fragments at stone pits and mines, sorting materials by size and specification for stockpiling.
River & Waterway Cleanup
Salvages floating branches, litter and aquatic weeds from rivers, ponds and water channels to keep water areas unclogged.
