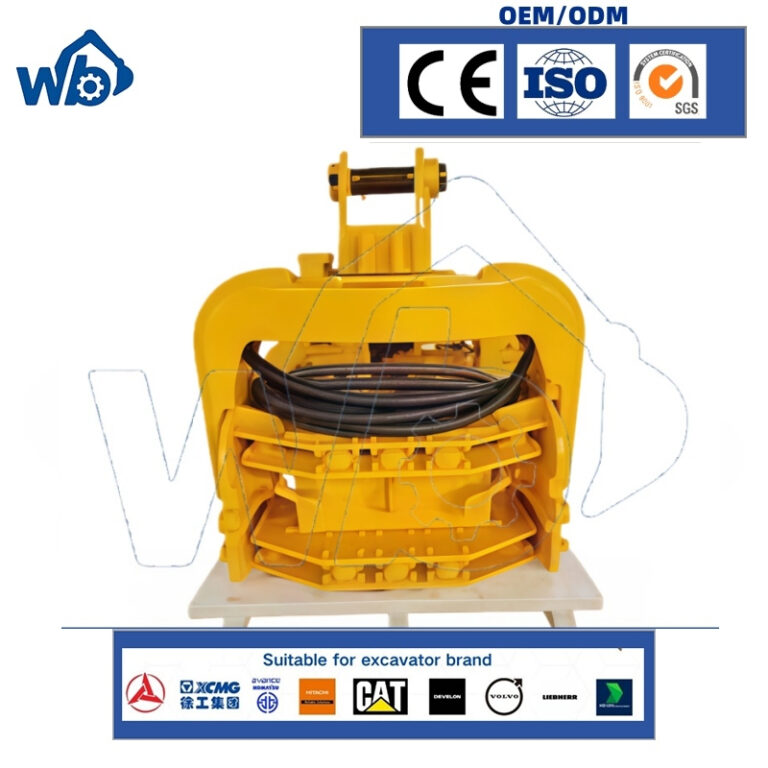

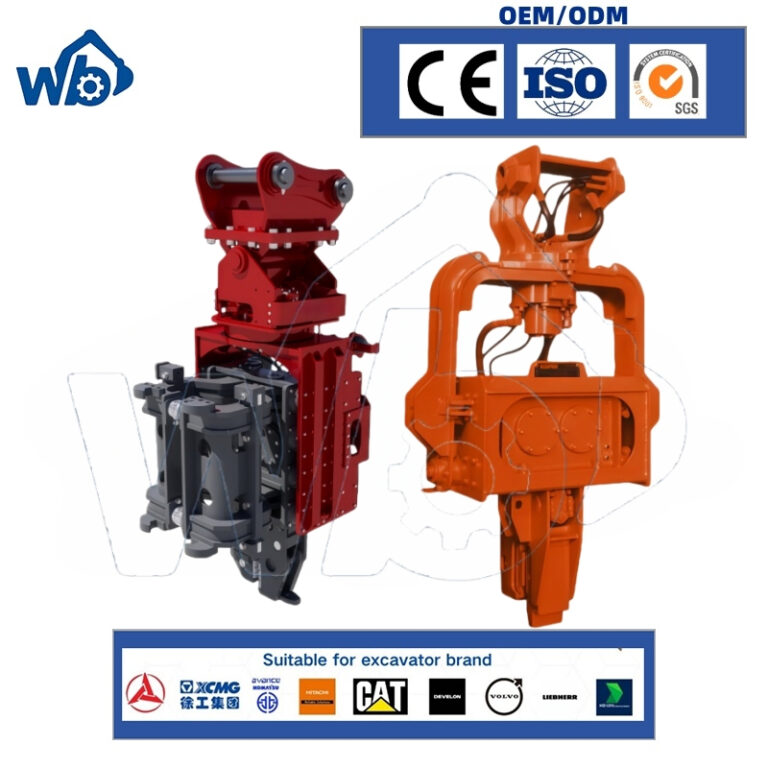

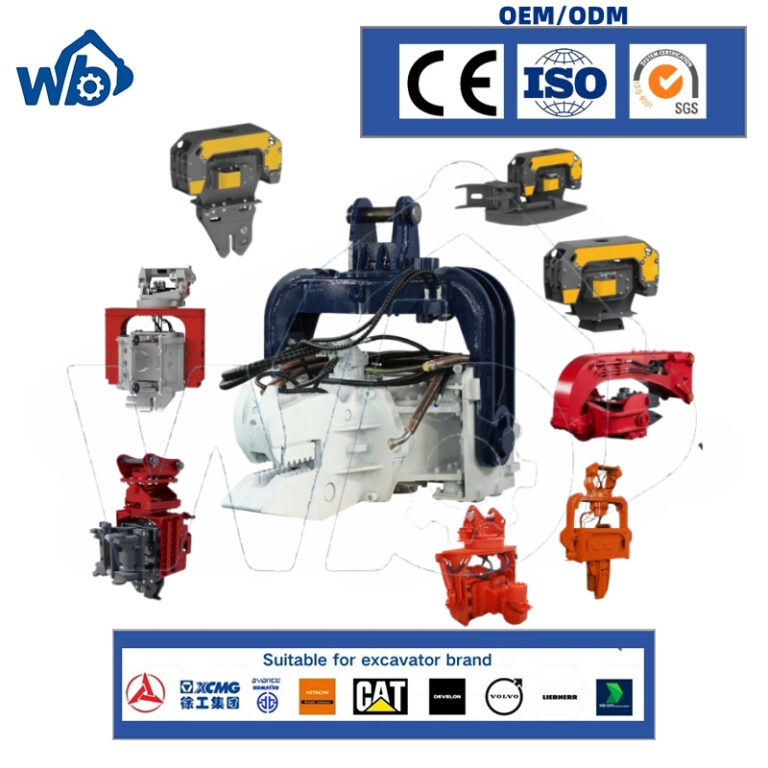

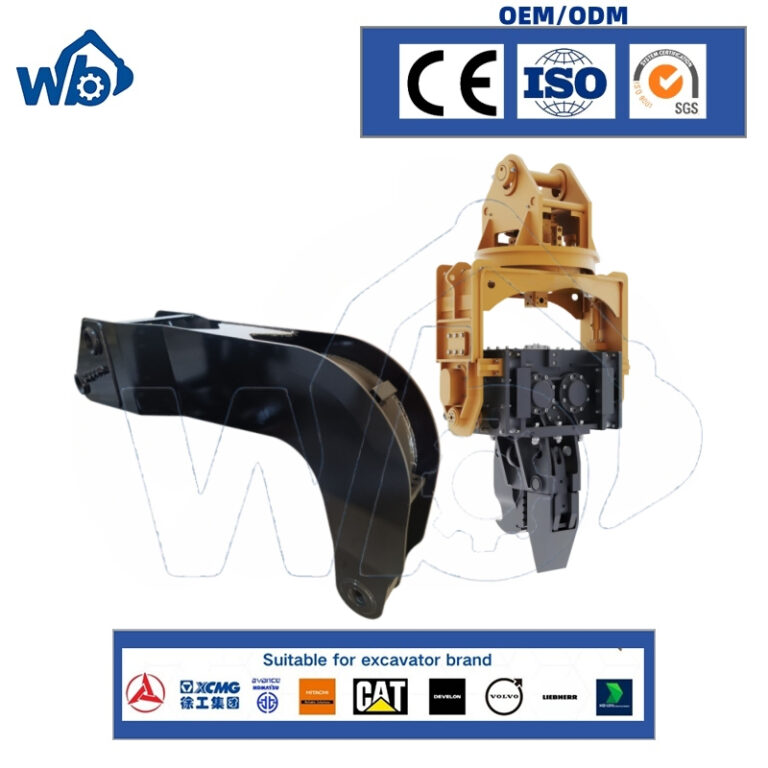

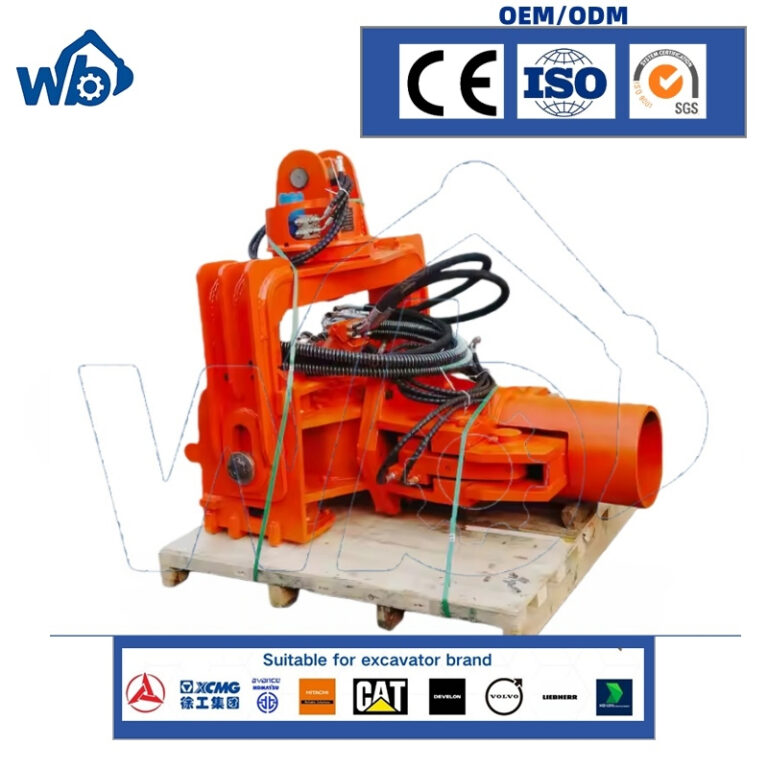

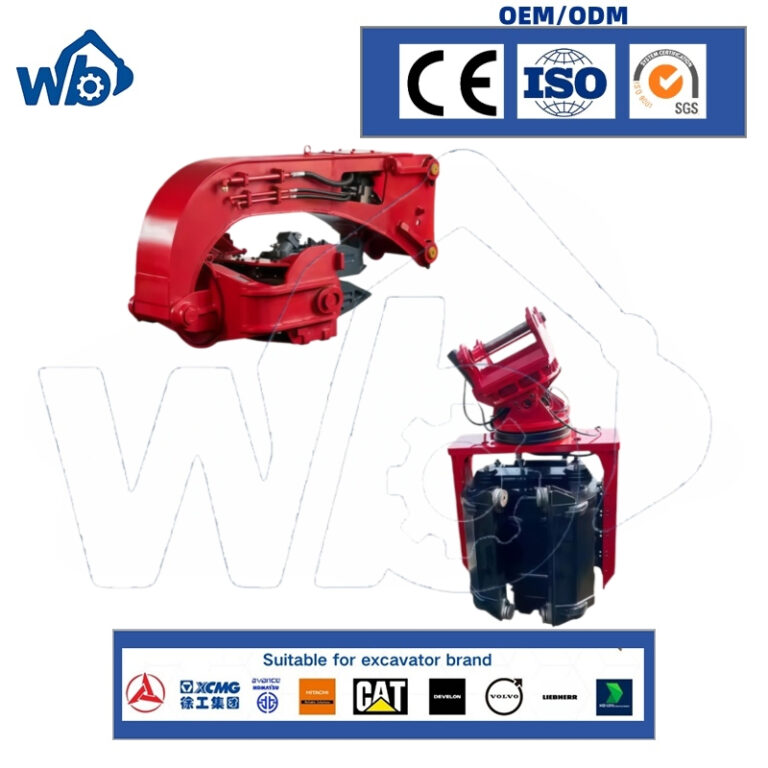

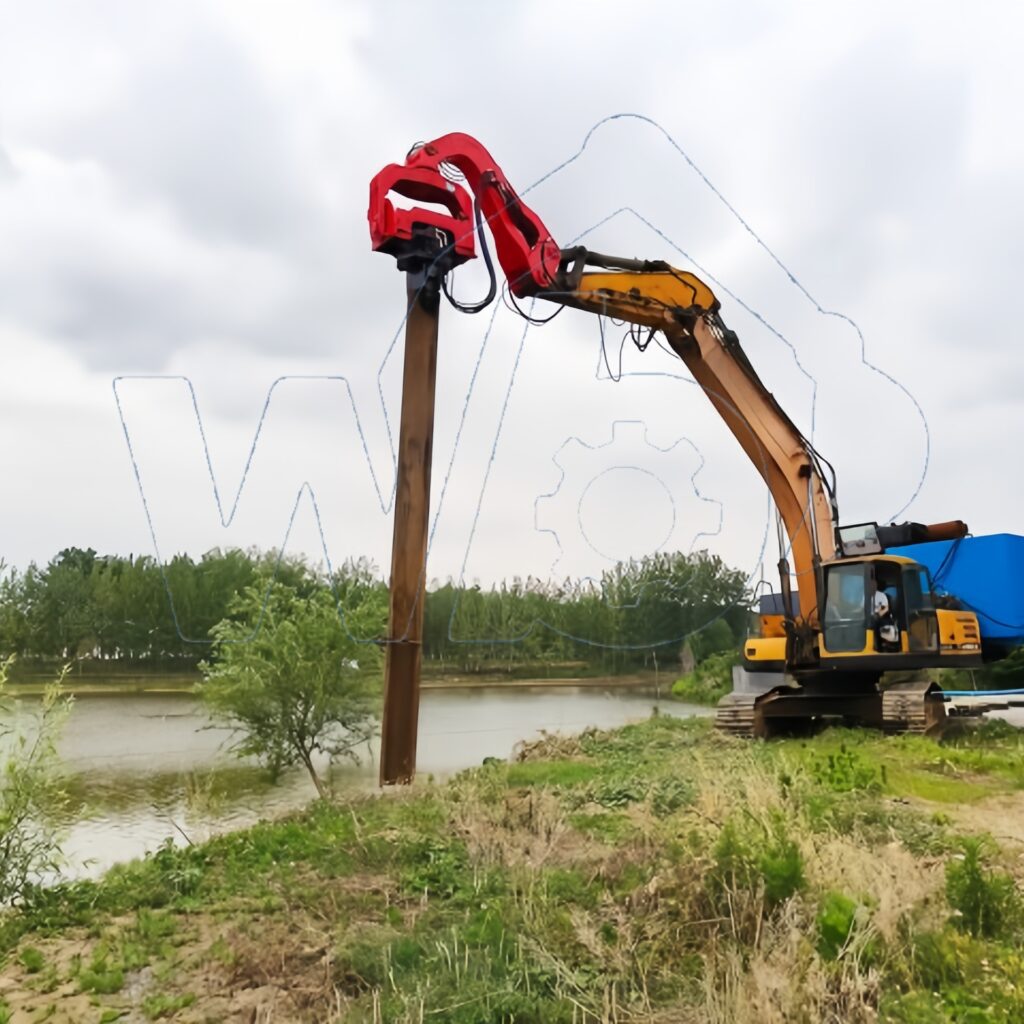

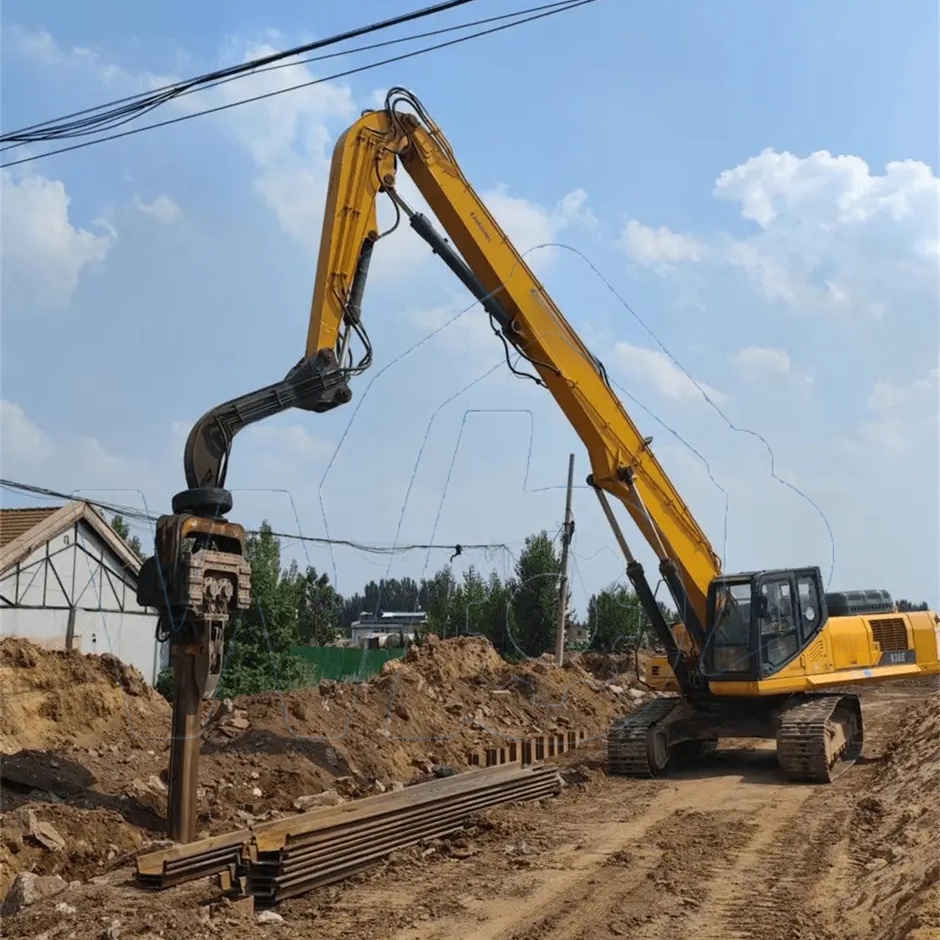

Excavator Pile Driver
-
Significantly improves pile driving efficiency
-
Reduces labor and equipment costs
-
Accurate pile positioning with minimal deviation
-
Suitable for various soil conditions
-
Rugged design for continuous heavy-duty operation
-
Ideal for solar, construction, infrastructure, and agricultural projects
Product Description
Excavator Pile Driver for Road, Bridge and Utility Projects
Specification
Item/Model | Unit | WB19-150 | WB19-250 | WB19-300 | WB19-350 | WB19-450 | |
Suitable Excavator | ton | 12-17 | 18-25 | 30-40 | 40-50 | 40-65 | |
Eccentric Moment | Nm | 32 | 36 | 50 | 65 | 85 | |
Frequency | rpm | 2500 | 2800 | 2800 | 2800 | 2800 | |
Centrifugal Force | kN | 172 | 265 | 420 | 580 | 750 | |
Working Pressure | bar | 300 | 300 | 320 | 320 | 320 | |
Working Flow | lpm | 120 | 155 | 168 | 210 | 255 | |
Max Turning | degree | 180 | 180 | 180 | 180 | 180 | |
Weight | Main Body | kg | 1300 | 1900 | 2650 | 2900 | 3000 |
Extension Boom | kg | 260 | 400 | 650 | 650 | 650 | |
Total Weight | kg | 1560 | 2300 | 3300 | 3550 | 3650 | |

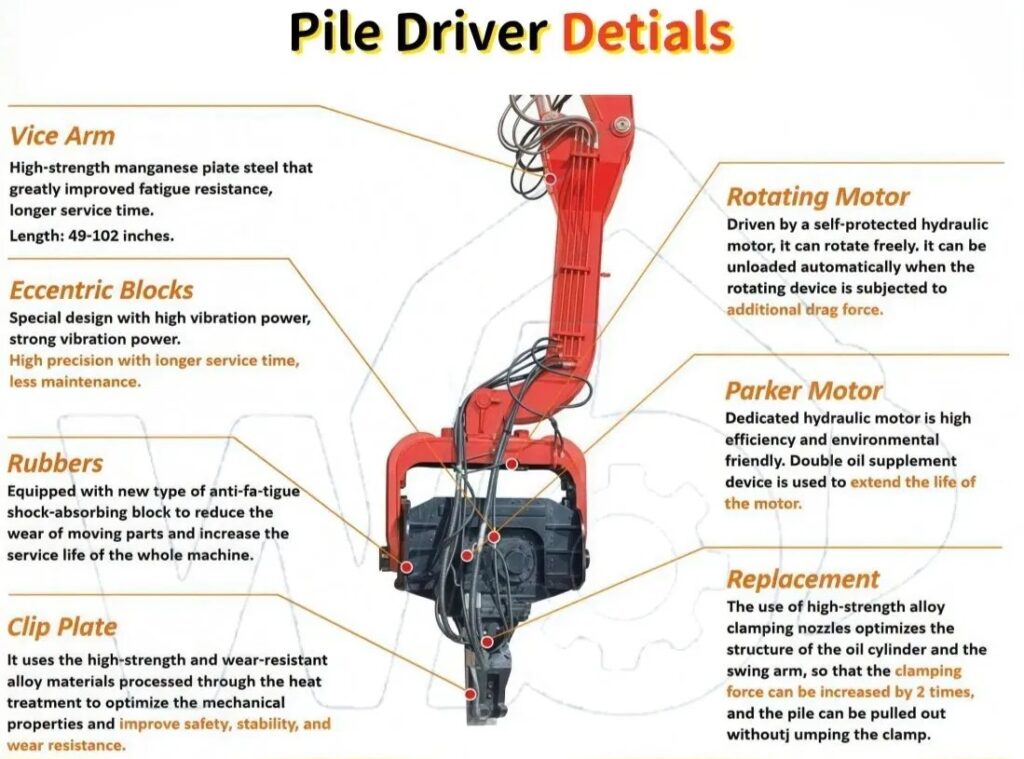

Key Features
1.Advanced Structural Design
* The pile driver housing adopts an open box structure, ensuring internal pressure balance and efficient heat dissipation for stable long-term operation.
* High-strength structural design enhances overall durability under continuous heavy-duty use.
2.Premium Core Components
* Equipped with German-brand bearings, offering stable performance and extended service life.
* Powered by imported hydraulic motors, delivering consistent and reliable output.
* Fitted with high-performance imported shock-absorbing rubber blocks, effectively reducing vibration and fatigue while ensuring long service life.
3.Strong Clamping & Wear Resistance
* The clamping jaws are made of imported wear-resistant steel plates, providing excellent abrasion resistance.
* The clamping cylinder delivers strong thrust and reliable pressure holding, ensuring the pile remains firmly secured without loosening.
* This design significantly improves construction safety and operational stability.
4.Durable Tooth Plate Design
* The tooth plates are manufactured from high-wear-resistant steel, offering superior durability and extended working life even in harsh conditions.

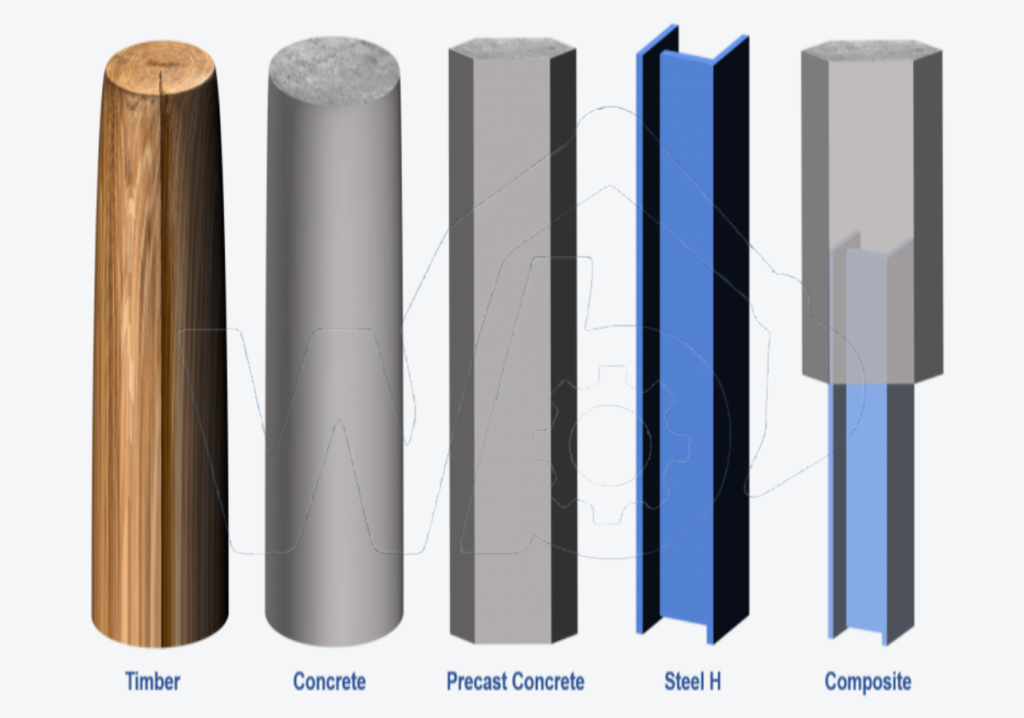

Suitable Pile Types
| • Steel pipes | • Timber piles |
| • H-beams | • Concrete piles |
| • I-beams | • Solar ground piles |
| • Channel steel | • Guardrail posts |

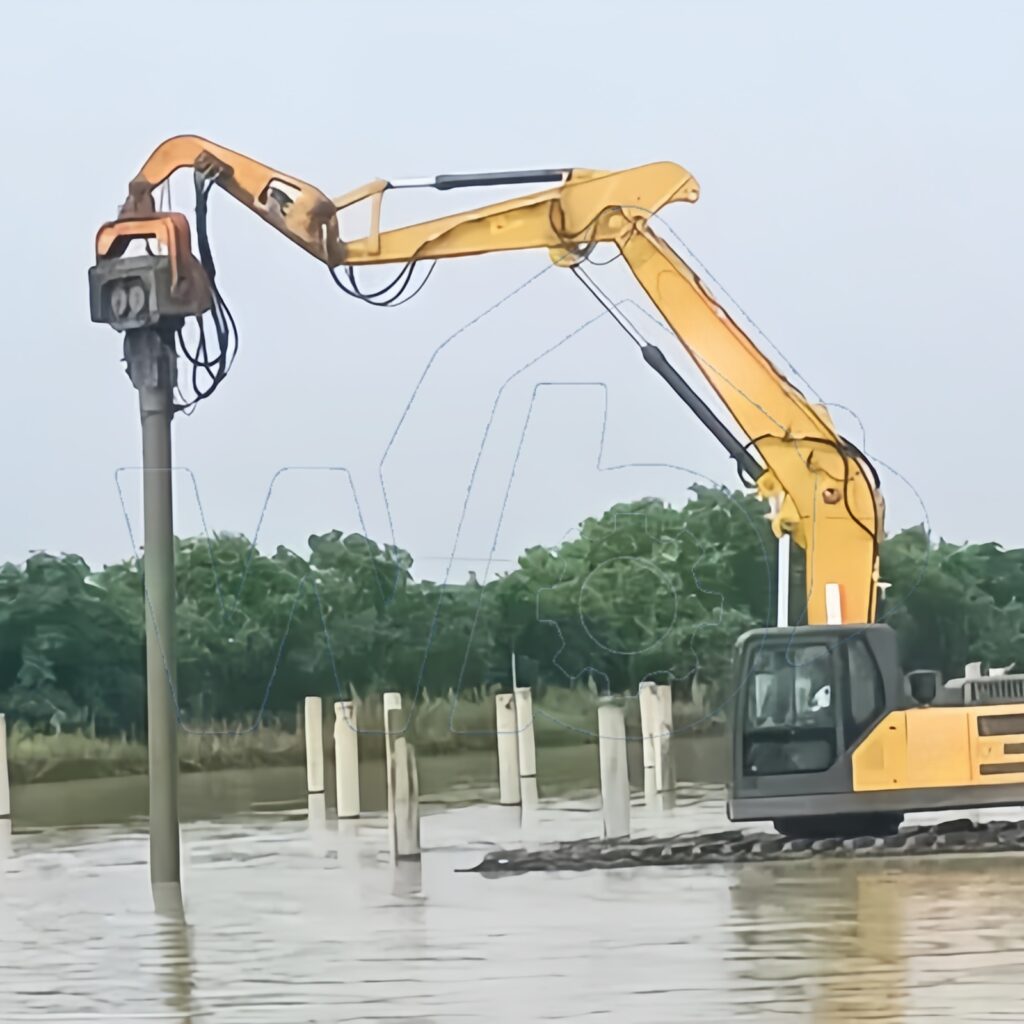

Applications
1.Construction Projects
Used in foundation work for infrastructure such as high-rise buildings, bridges, tunnels, etc.
2.Offshore Projects
For driving piles into the seabed for offshore platforms, piers, and marine construction projects.
3.Highway and Railway Construction
In roadbed, bridge, and railway track foundation work, piles are driven to support the structure.
4.Wind Farm Construction
Pile drivers are used to drive piles for the foundations of wind turbines, especially in offshore wind farms.
5.Infrastructure Renovation and Strengthening
In reinforcement projects for existing buildings, pile drivers are used to drive new piles to enhance the foundation’s stability.
6.Municipal Engineering
In the installation of underground facilities like drainage and water supply pipelines, pile driving is sometimes used for support.
7.Environmental Projects
In waste landfills, sewage treatment plants, and other environmental facilities, pile drivers are used to ensure the stability of infrastructure.
Leave Us A Message
Related Products
-

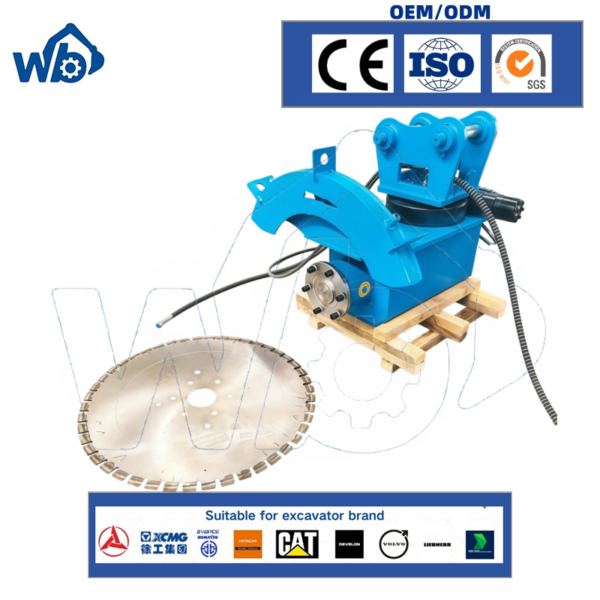

Excavator AttachmentsExcavator Circular Saw
-

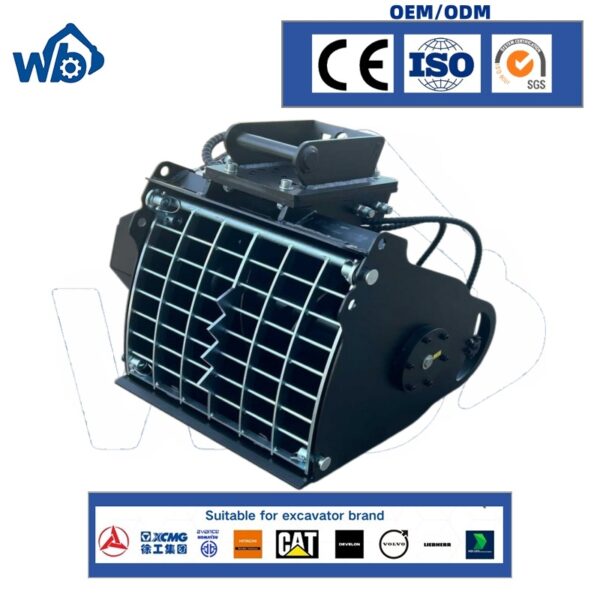

Bucket SeriesExcavator Concrete Mixer Bucket
-
Excavator AttachmentsExcavator Three Section Demolition Boom
-

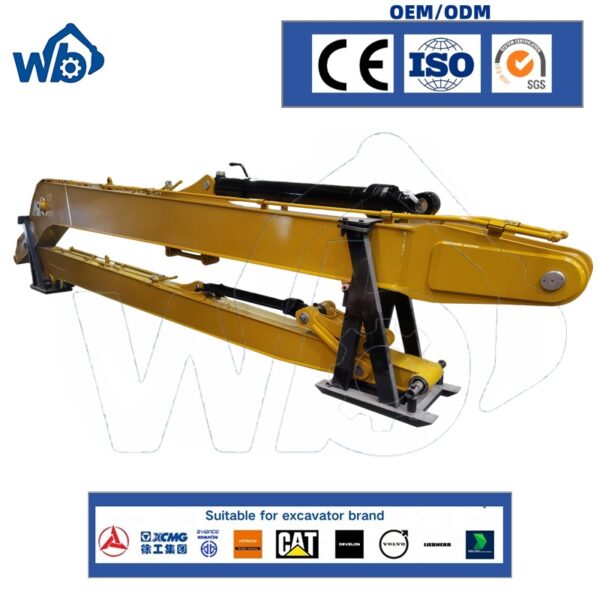

Excavator AttachmentsExcavator Long Reach Boom
