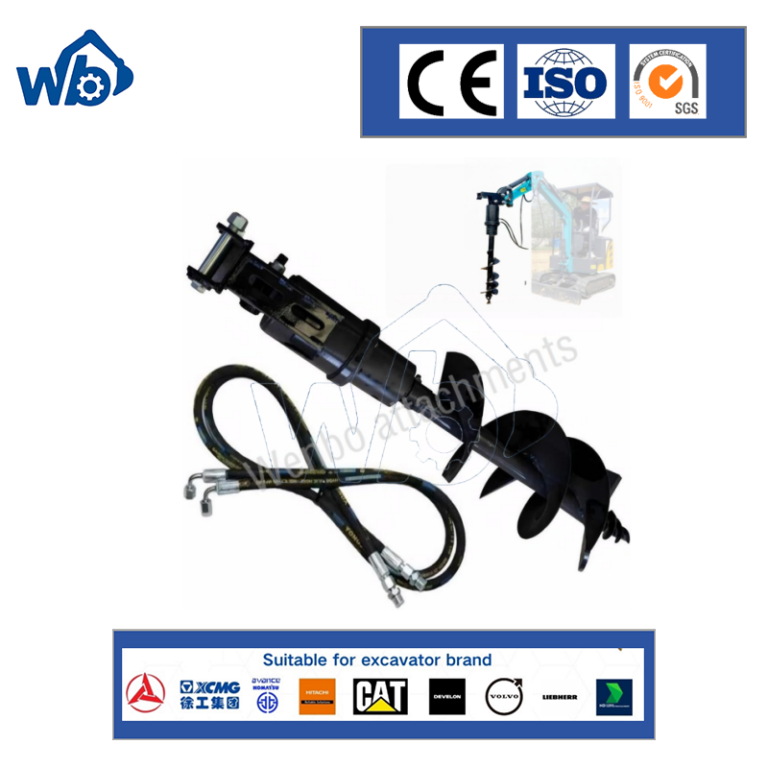

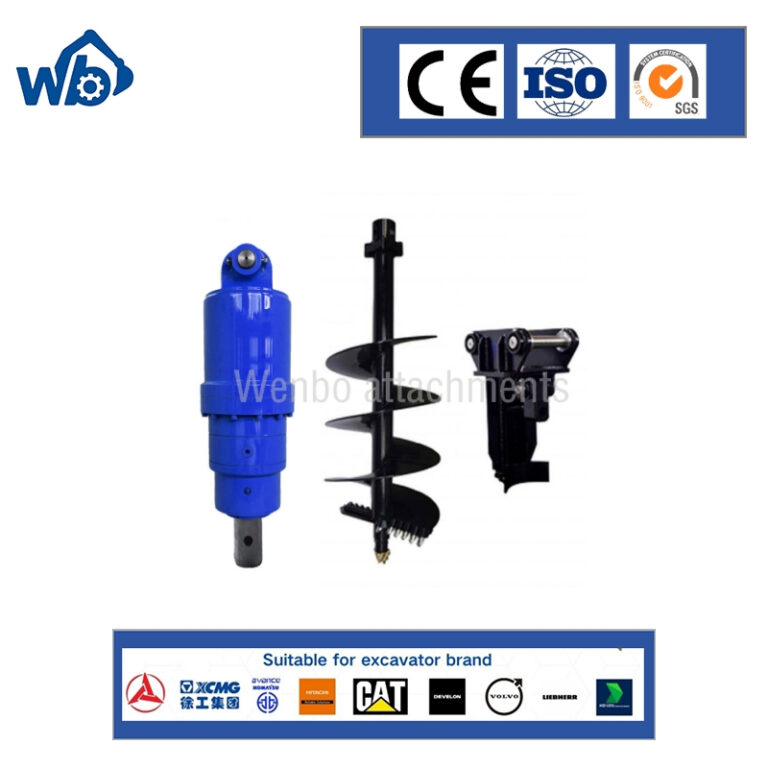

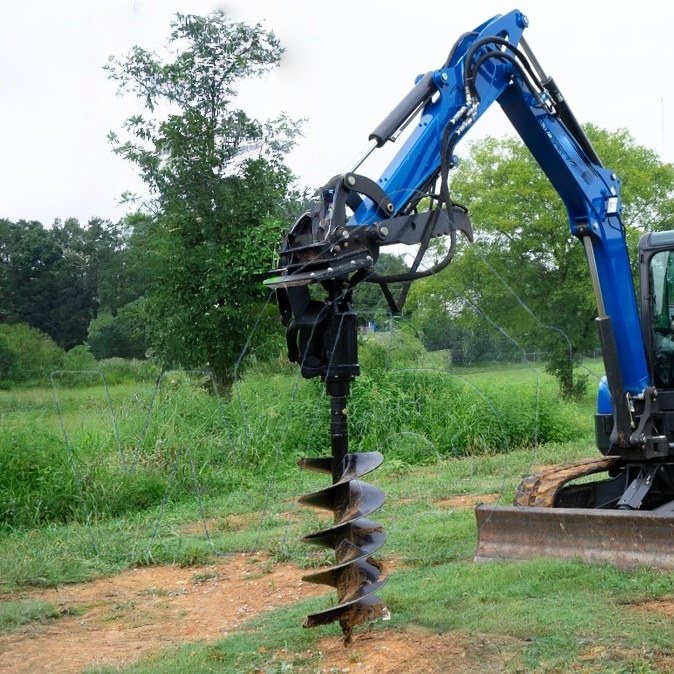

Excavator Earth Auger
- Designed for fast and efficient drilling in soil, clay, sand, and soft rock.
- High-torque hydraulic drive delivers stable and powerful performance.
- Interchangeable auger bits for different hole diameters and ground conditions.
- Ideal for fencing, tree planting, foundation work, utility poles, and solar projects.
Product Description
Hydraulic Excavator Earth Auger for Fence Posts, Tree Planting & Foundation Drilling

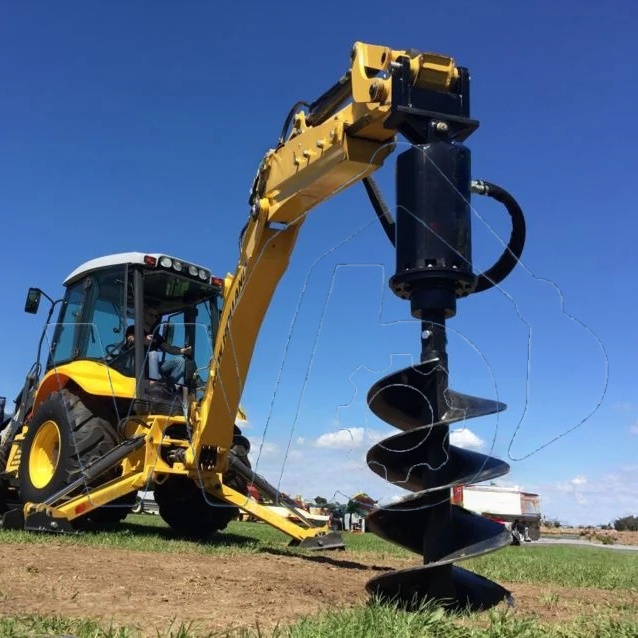

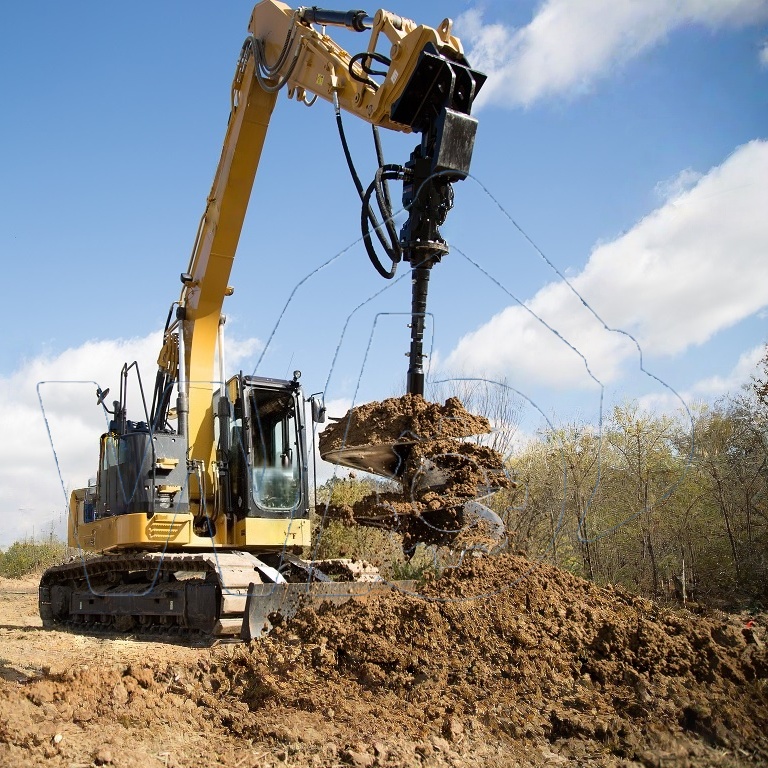

The Excavator Earth Auger is a powerful hydraulic drilling attachment designed for fast and efficient hole drilling in soil, clay, gravel, and soft rock. It is ideal for excavators used in construction, agriculture, landscaping, fencing, and utility installation.

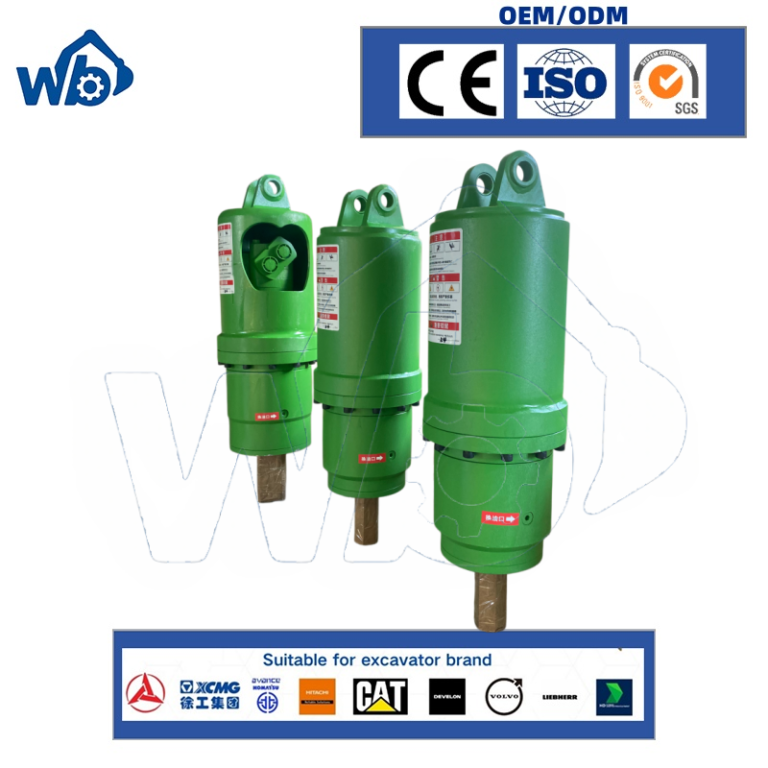

Powered by a high-torque hydraulic motor and equipped with a heavy-duty gearbox and wear-resistant auger bits, the excavator earth auger delivers reliable performance, high drilling efficiency, and long service life in demanding working conditions.
Specification
Item/Model | Unit | WB17-MINI | WB17-02 | WB17-04 | WB17-06 | WB17-06s | WB17-08 | WB17-08s | |
Excavator Weight | ton | 2.5-4.5 | 4.5-6 | 5-8 | 13-17 | 15-17 | 15-20 | 17-30 | |
Measurement | mm | φ200*585 | φ270*850 | φ270*850 | φ300*945 | φ300*945 | φ345X1155 | φ345X1155 | |
Weight | kg | 60 | 100 | 152 | 170 | 175 | 265 | 272 | |
Working Pressure | bar | 205 | 205 | 205 | 205 | 205 | 205 | 205 | |
Max Pressure | bar | 310 | 310 | 310 | 310 | 310 | 310 | ||
Max Torque | nm | 3760 | 7300 | 12300 | 15200 | 19800 | 24920 | ||
Rated Oil Flow | lpm | 150 | 150 | 150 | 150 | 150 | 150 | ||
Max Oil Flow | lpm | 210 | 225 | 170 | 210 | 210 | 225 | ||
Diameter of Oil Pipe | G1/2″ | G1/2″ | G1/2″ | G3/4 | G3/4″ | G3/4″ | G1″ | ||
Drilling diameter and depth | φ150-250mm | 3m | 10m | 10m | 10m | 10m | 10m | 10m | |
φ300-400 mm | 8m | 10m | 10m | 10m | 10m | 10m | |||
φ450-550mm | 6m | 8m | 10m | 10m | 10m | 10m | |||
φ600-700mm | 6m | 10m | 10m | 10m | 10m | ||||
φ750-850mm | 10m | 10m | 10m | 10m | |||||
φ900-1000mm | 10m | 10m | 10m | ||||||
Products Features
1.High drilling efficiency:
Powerful hydraulic drive delivers strong torque for stable and continuous drilling.
2.Wide ground adaptability:
Suitable for soil, clay, sand, frozen ground, and light to medium rock (with proper teeth).
3.Durable structure:
High-strength steel flighting with wear-resistant alloy steel teeth,All pins are heat-treated,firm and durable.

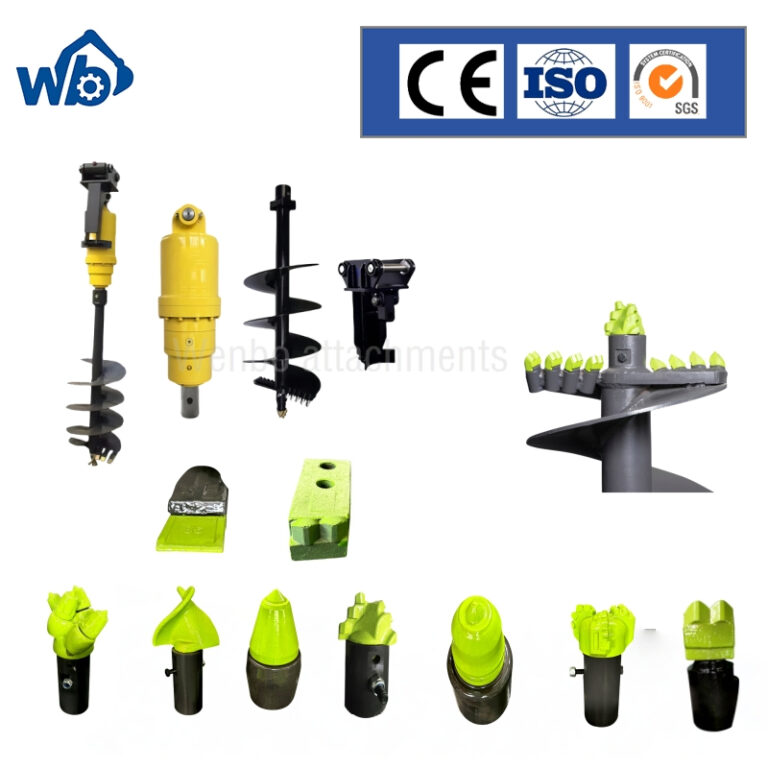

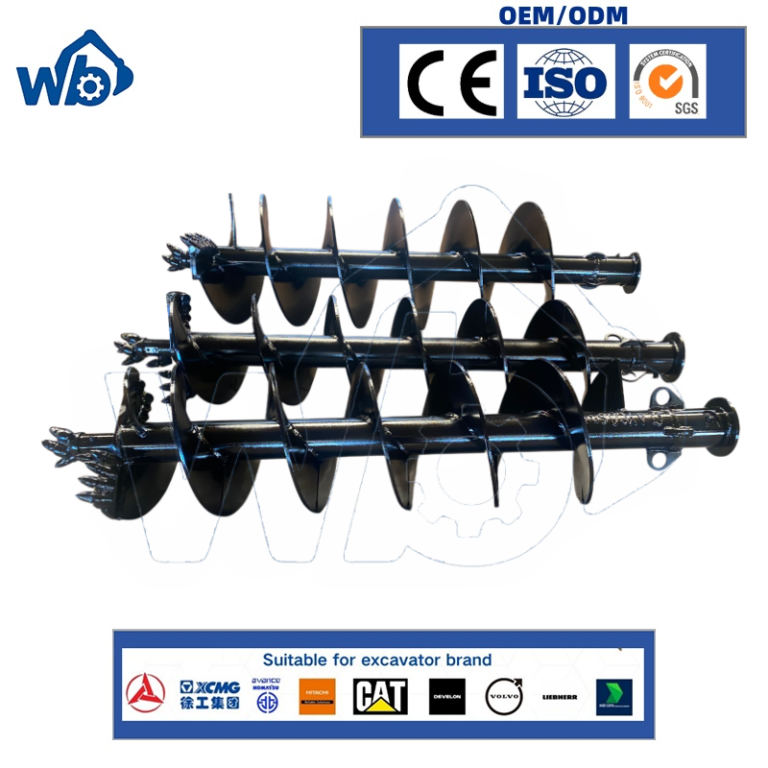

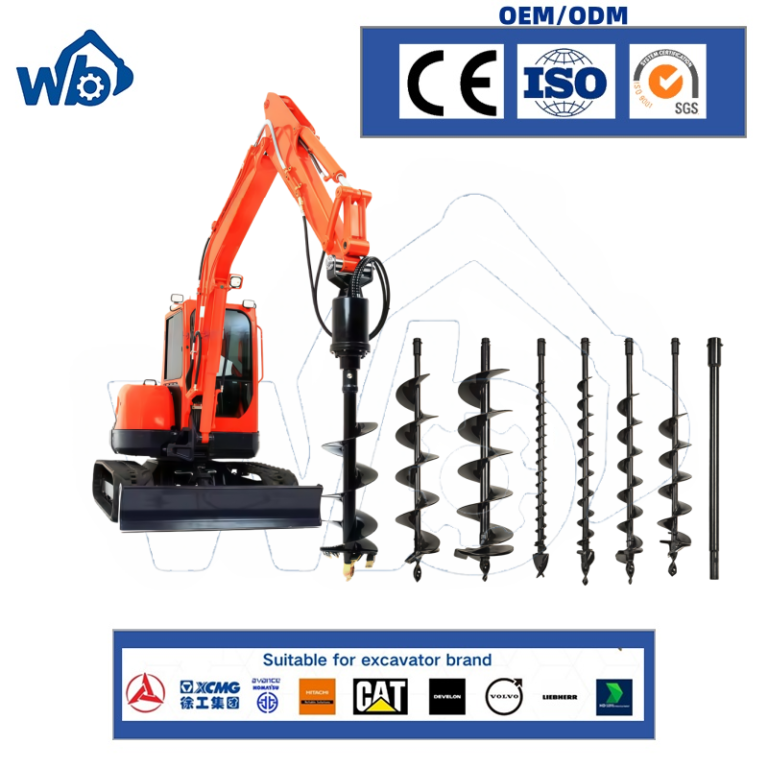

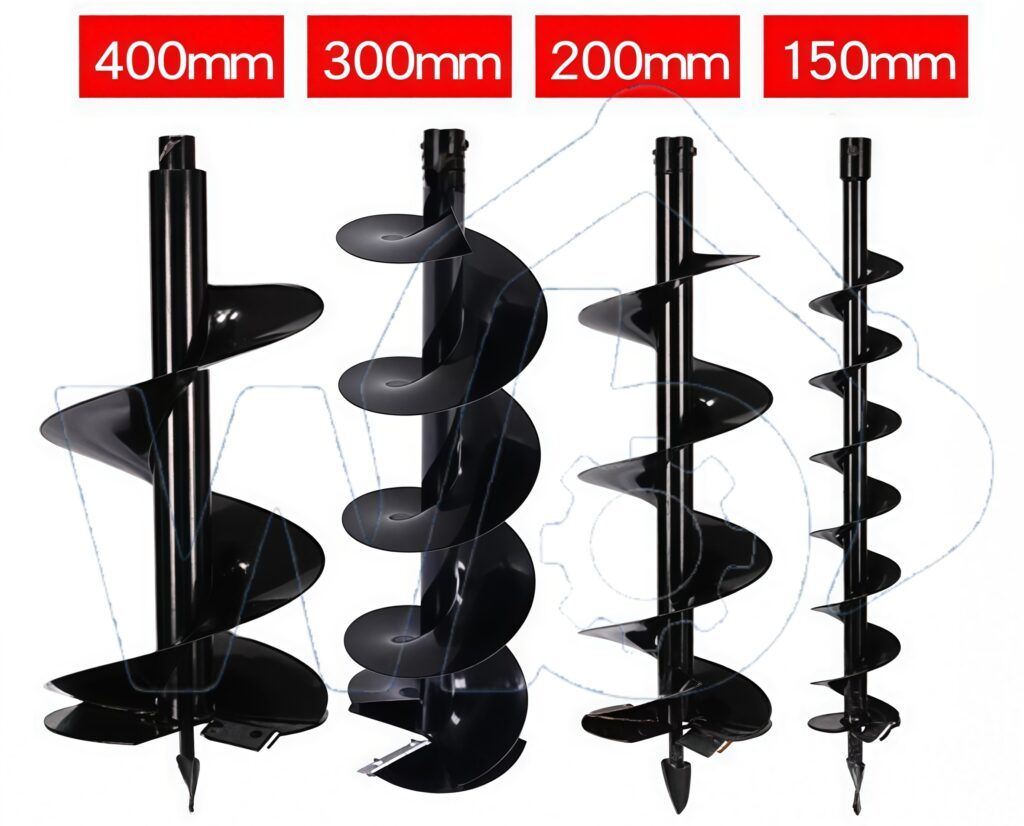

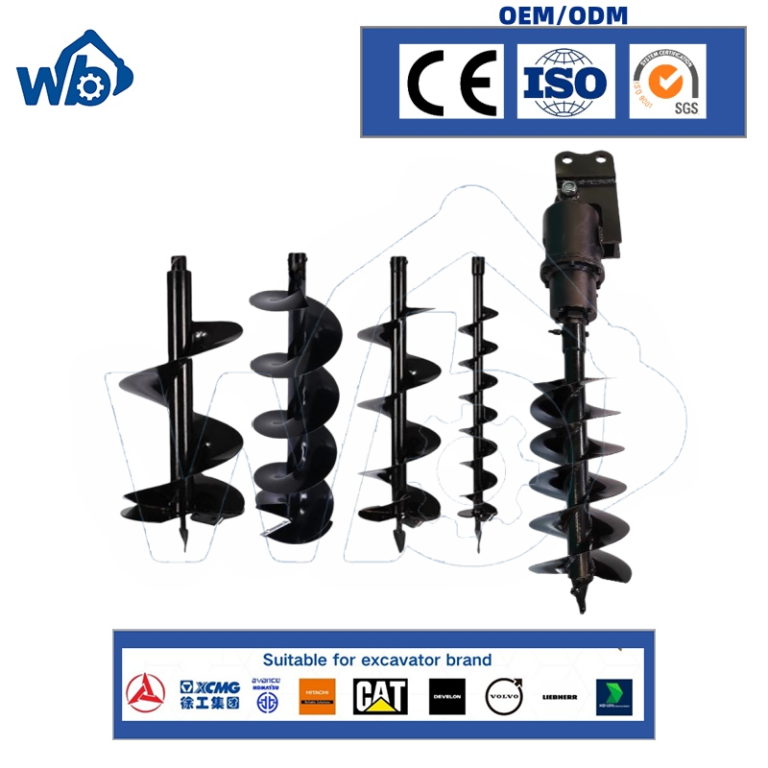

4.Interchangeable auger bits:
Multiple diameters and tooth types available for different applications.

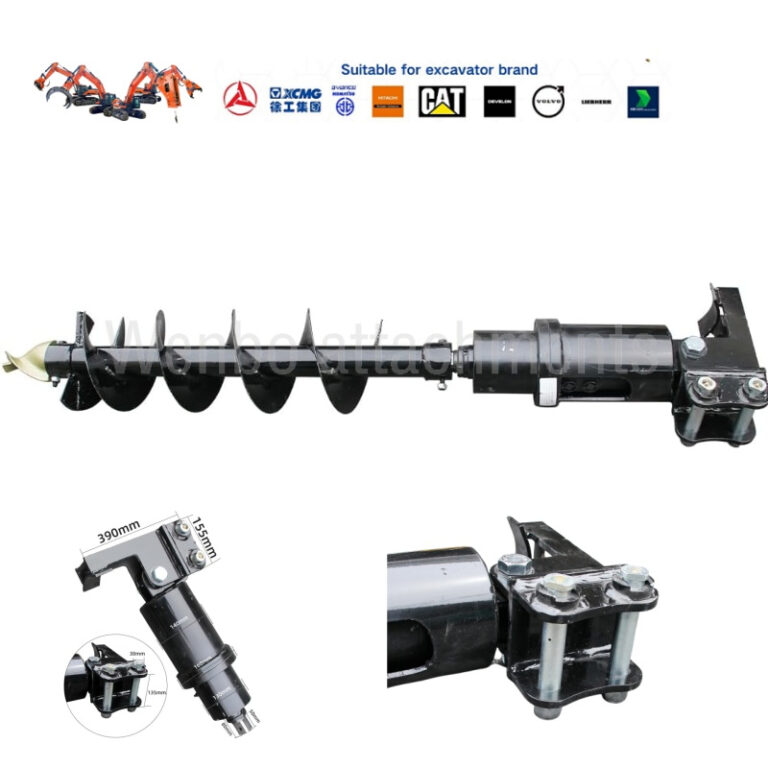

5.Easy installation:
Compatible with various carriers via custom adapters.
Optional Customization
Drilling Diameter

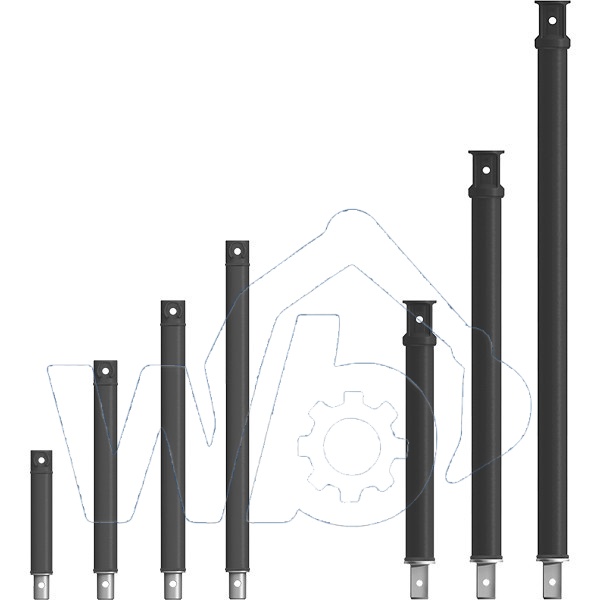

Drilling depth
Applications
- Fence Post Installation – Drill precise holes for fence and guardrail posts.
- Tree Planting & Landscaping – Create holes for trees, shrubs, and landscaping projects.
- Foundation Drilling – Drill footings and foundation holes for construction.
- Utility Installation – Install utility poles, signposts, and communication poles.
- Solar Projects – Drill holes for solar ground piles and mounting systems.
- Agriculture & Forestry – Plant crops, trees, and vineyard posts efficiently.
- Road & Infrastructure – Install road signs, barriers, and traffic infrastructure.
- Construction & Civil Engineering – Fast, accurate drilling for a wide range of earthmoving projects.
